Wallstop Studios Unity Helpers - Editor Tools Guide¶

TL;DR — What You Get¶

One‑click utilities for sprites, textures, validation, and automation.
Clear menus, step‑by‑step workflows, and safe previews before destructive actions.
Start with: Sprite Cropper, Image Blur, Animation Creator, Prefab Checker, and the ScriptableObject Singleton Creator.

Comprehensive documentation for all editor wizards, windows, and automation tools.

What Do You Want To Do? (Task-Based Index)¶

Optimize Sprite Memory & Performance¶

Remove transparent padding → Sprite Cropper
Adjust texture size automatically → Fit Texture Size
Batch apply import settings → Texture Settings Applier
Standardize sprite settings → Sprite Settings Applier
Adjust sprite pivots → Sprite Pivot Adjuster

Create & Edit Animations¶

Edit animation timing/frames visually → Sprite Animation Editor
Bulk-create animations from sprites → Animation Creator
Convert sprite sheets to clips → Sprite Sheet Animation Creator
Add/edit animation events → Animation Event Editor

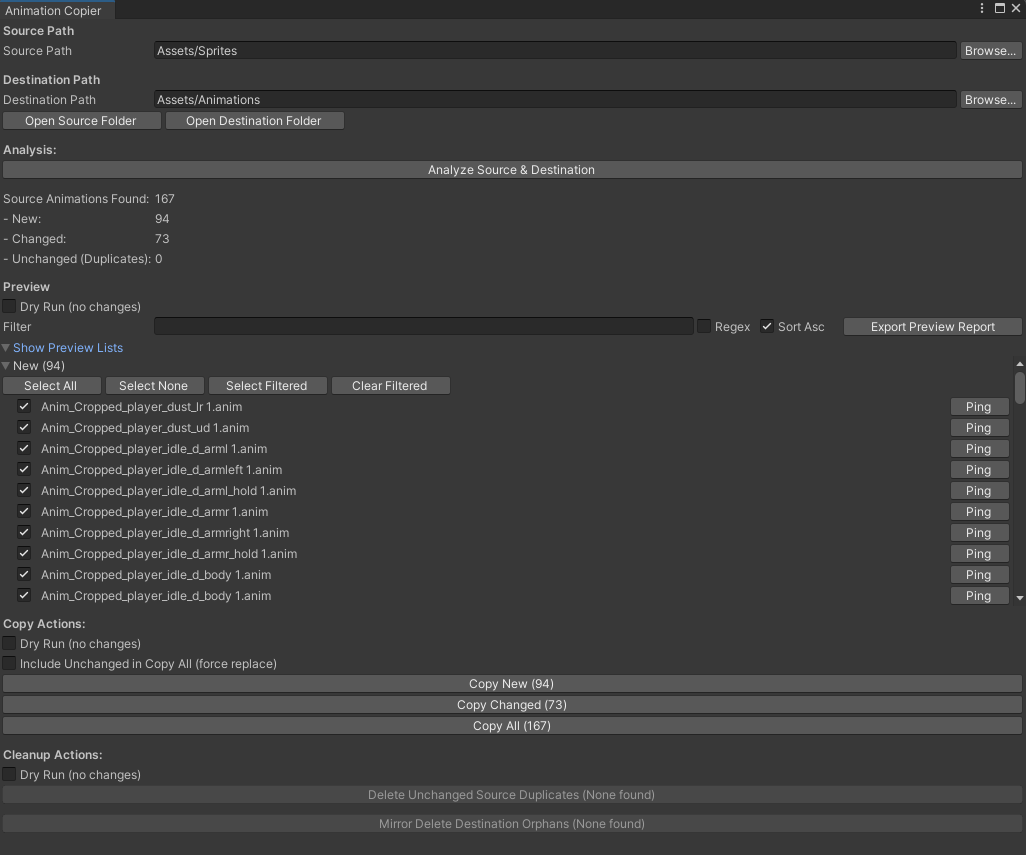

Copy/sync animations between folders → Animation Copier

Build Sprite Atlases¶

Create atlases with regex/labels → Sprite Atlas Generator

Validate & Fix Prefabs¶

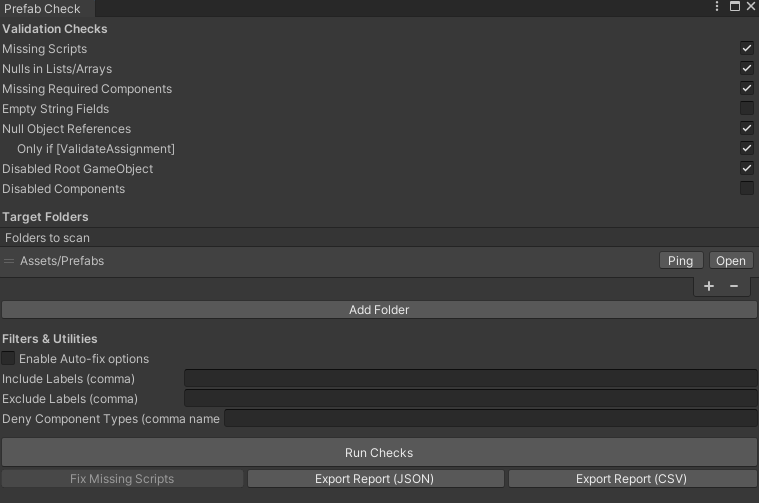

Check prefabs for errors → Prefab Checker

Analyze Code Quality¶

Detect inheritance and Unity method issues → Unity Method Analyzer

Apply Visual Effects¶

Blur textures (backgrounds, DOF) → Image Blur Tool
Resize textures with filtering → Texture Resizer

Automate Setup & Maintenance¶

Auto-create singleton assets → ScriptableObject Singleton Creator
Respond to asset changes → Asset Change Detection
Cache attribute metadata → Attribute Metadata Cache Generator
Track sprite labels → Sprite Label Processor

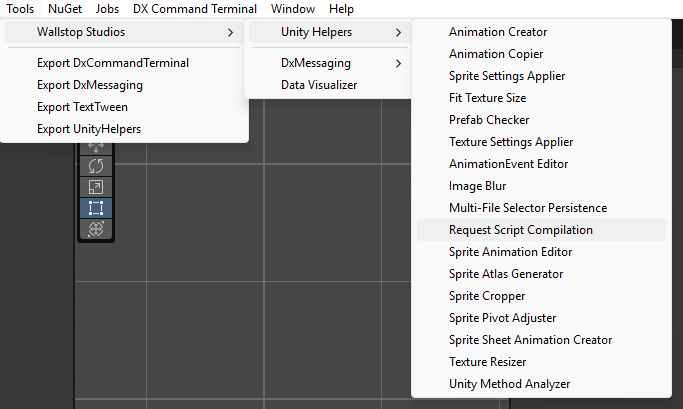

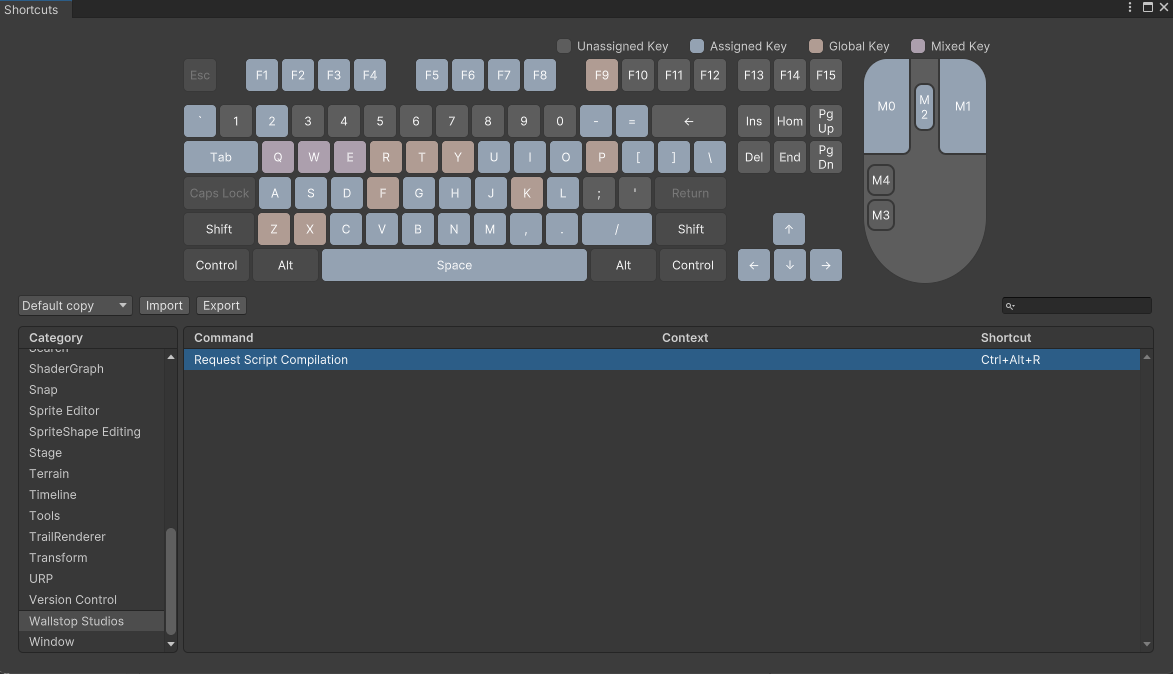

Manually trigger script recompilation → Request Script Compilation

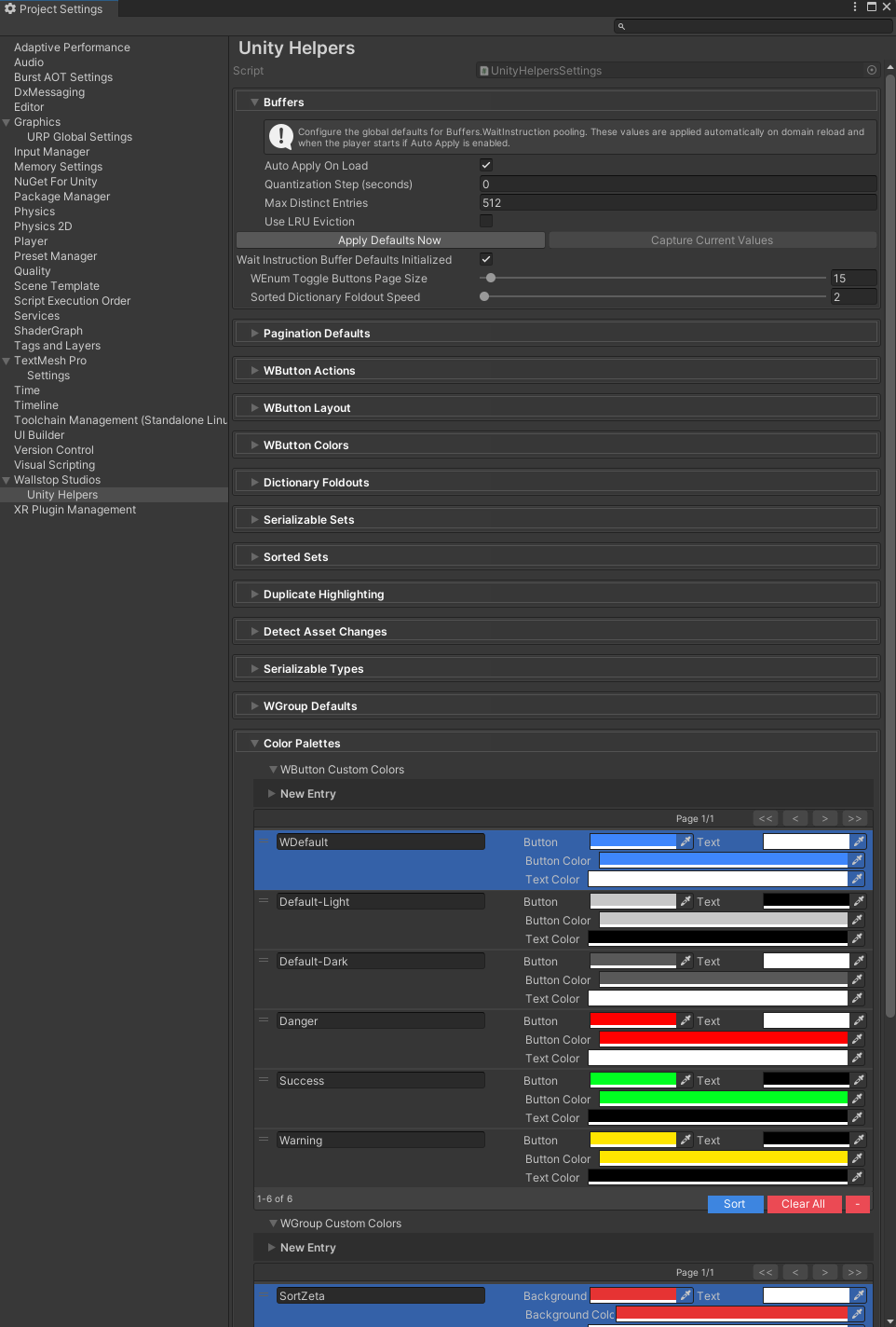

Configure buffer settings → Project Settings: Unity Helpers

Enhance Inspector Workflows¶

See the Inspector Attributes documentation for:

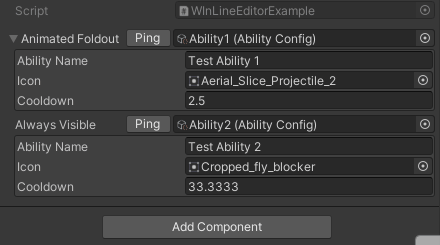

[WInLineEditor] — Embed nested object inspectors inline

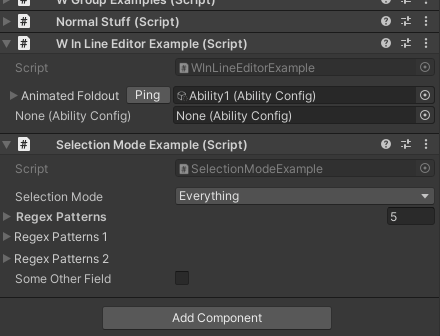

[WShowIf] — Conditional field visibility
[WEnumToggleButtons] — Visual toggle buttons for enums

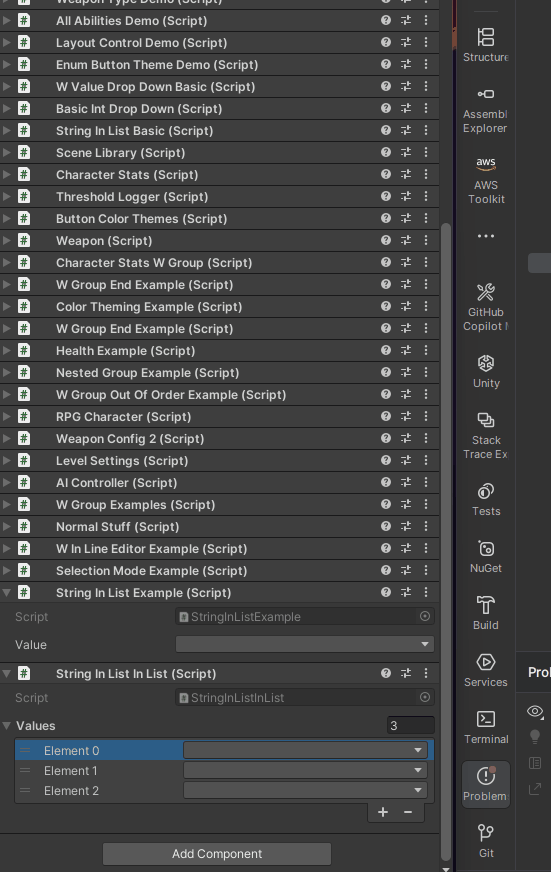

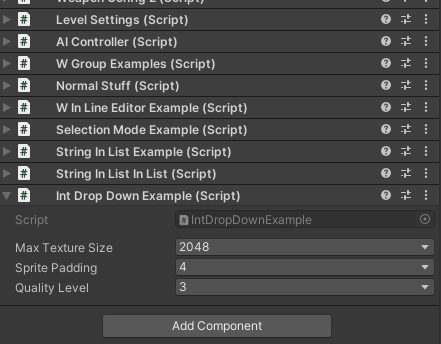

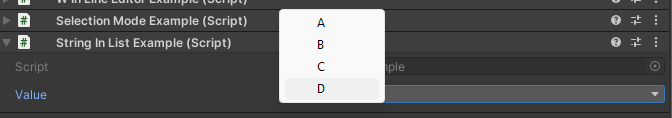

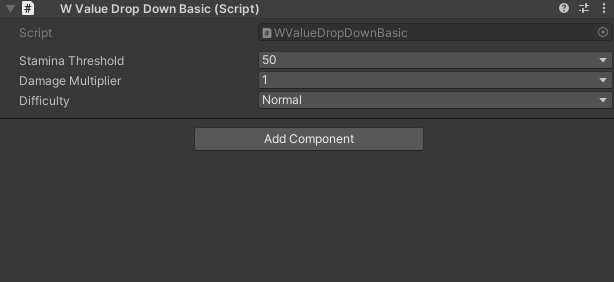

[WValueDropDown], [IntDropDown], [StringInList] — Selection dropdowns
[WReadOnly], [WNotNull] — Validation attributes
[WGroup], [WButton] — Layout and method invocation

Texture & Sprite Tools¶

Image Blur Tool¶

Menu: Tools > Wallstop Studios > Unity Helpers > Image Blur

Purpose: Apply Gaussian blur effects to textures in batch for backgrounds, depth-of-field, or softened sprites.

Key Features:

Configurable blur radius (1-200 pixels)
Batch processing support
Drag-and-drop folders/files
Preserves original files
Parallel processing for speed

Common Workflow:

Text Only

1. Open Image Blur Tool
2. Drag sprite folder into designated area
3. Set blur radius (e.g., 10 for subtle, 50 for heavy)
4. Click "Apply Blur"
5. Find blurred versions with "_blurred_[radius]" suffix

Best For:

UI background blur effects
Depth-of-field texture generation
Post-processing texture preparation

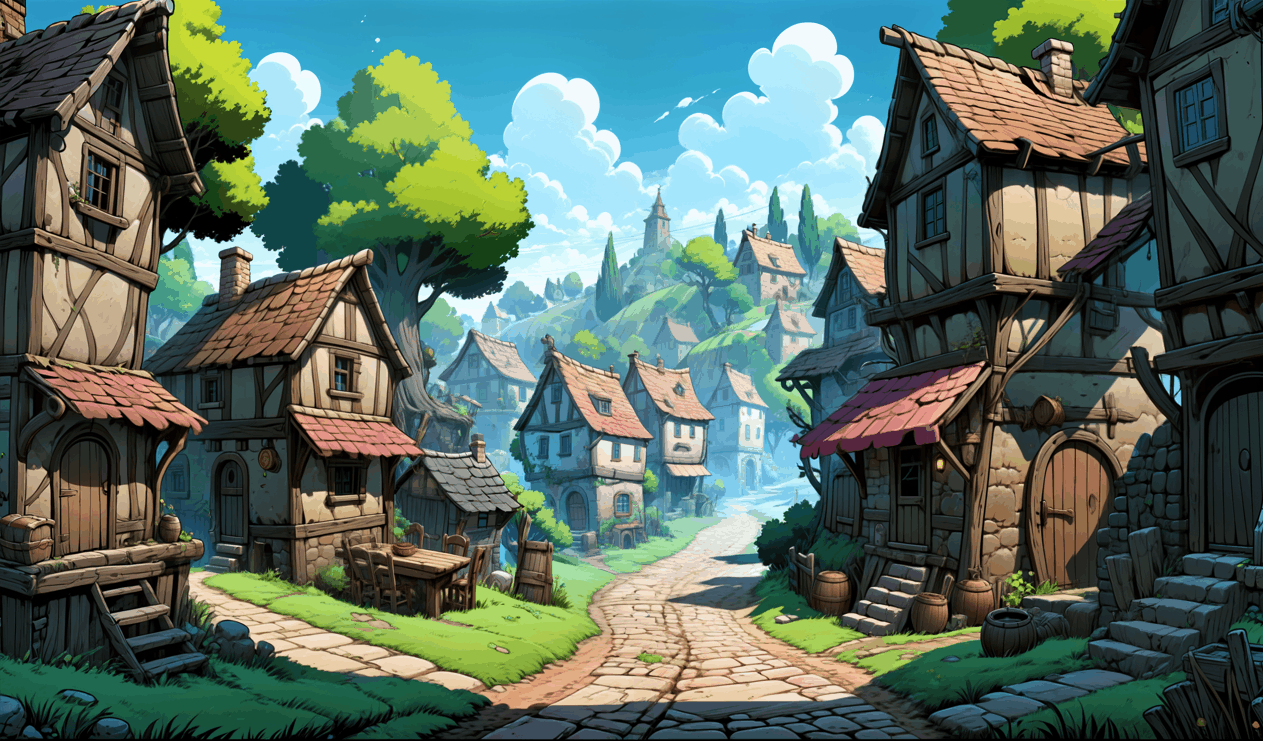

Visual Demo

Adjusting blur radius from 0 to 200 pixels on a UI background texture

Sprite Cropper¶

Menu: Tools > Wallstop Studios > Unity Helpers > Sprite Cropper

Purpose: Automatically remove transparent padding from sprites to optimize memory and atlas packing.

Key Features:

Alpha threshold detection (0.01)
Configurable padding preservation
Batch directory processing
"Only Necessary" mode to skip optimal sprites
Pivot point preservation in normalized coordinates

Common Workflow:

Text Only

1. Open Sprite Cropper
2. Add sprite directories to "Input Directories"
3. Set padding (e.g., 2px on all sides for outlines)
4. Enable "Only Necessary" to skip already-cropped sprites
5. Click "Find Sprites To Process" to preview
6. Click "Process X Sprites"
7. Replace originals with "Cropped_*" versions

**Danger Zone — Reference Replacement:**
- After cropping into `Cropped_*` outputs, you can optionally replace references to original sprites across assets with their cropped counterparts. This is powerful but destructive; review the preview output and ensure you have version control backups before applying.

Best For:

Sprites exported with excessive padding
Character animation optimization
Sprite atlas memory reduction
Preparing assets for efficient packing

Performance Impact: Can reduce texture memory by 30-70% on padded sprites.

Visual Demo

Before and after: transparent padding removed while preserving sprite content and pivot

Related Tools:

After cropping, use Texture Settings Applier to batch apply import settings
Before creating atlases, run Sprite Cropper → Sprite Atlas Generator
Use Sprite Pivot Adjuster after cropping to fix pivot points

Texture Settings Applier¶

Menu: Tools > Wallstop Studios > Unity Helpers > Texture Settings Applier

Purpose: Batch apply standardized texture import settings across multiple assets.

Configurable Settings:

Read/Write enabled
Mipmap generation
Wrap Mode (Clamp/Repeat/Mirror)
Filter Mode (Point/Bilinear/Trilinear)
Compression (CompressedHQ/LQ/Uncompressed)
Crunch compression
Max texture size (32-8192)
Texture format

Common Configurations:

UI Sprites (Pixel-Perfect):

Text Only
1 2 3 4 5	`Filter Mode: Point Wrap Mode: Clamp Compression: CompressedHQ or None Generate Mip Maps: false Max Size: 2048 or match source`

Environment Textures:

Text Only
1 2 3 4 5	`Filter Mode: Trilinear Wrap Mode: Repeat Compression: CompressedHQ Generate Mip Maps: true Crunch Compression: true`

Character Sprites:

Text Only
1 2 3 4	`Filter Mode: Bilinear Wrap Mode: Clamp Compression: CompressedHQ Generate Mip Maps: false`

Workflow:

Text Only
1 2 3 4 5	`1. Open Texture Settings Applier 2. Configure desired settings with checkboxes 3. Add textures individually OR add directories 4. Click "Set" to apply 5. Unity reimports affected textures`

Best For:

Standardizing settings after art imports
Fixing texture quality issues across directories
Maintaining performance standards
Team consistency enforcement

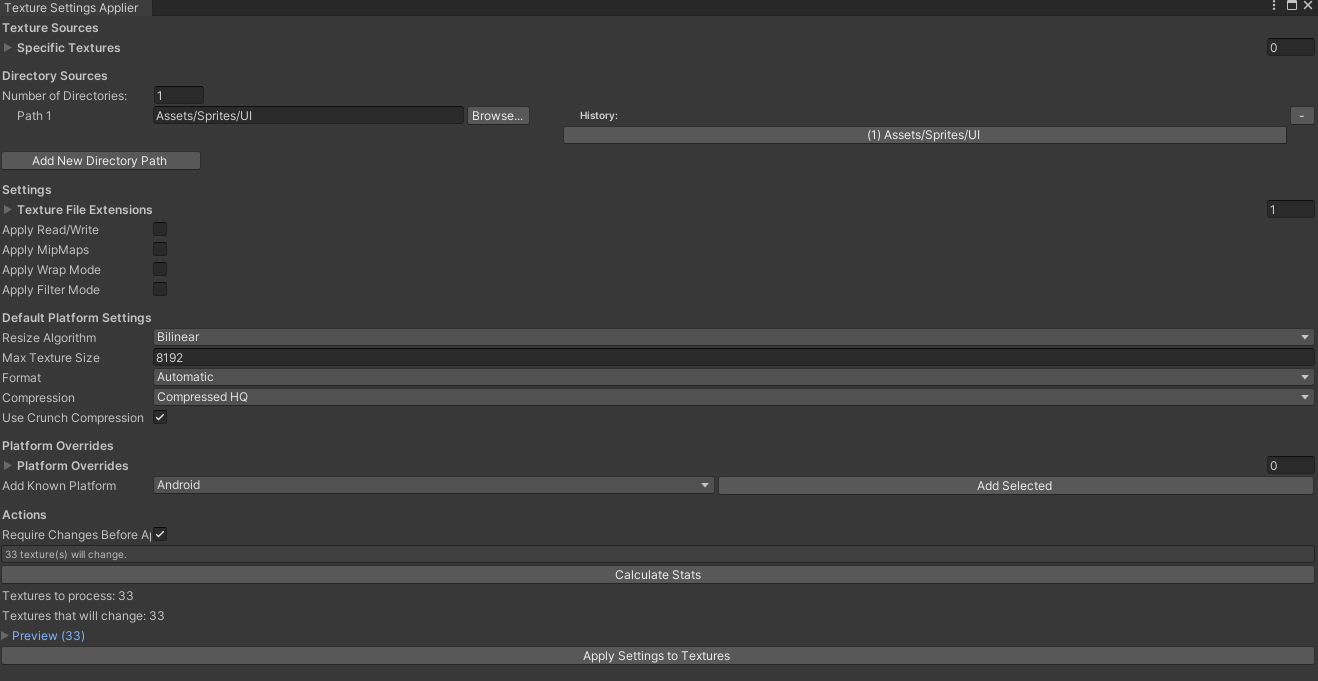

Visual Reference

Texture Settings Applier with filter mode, wrap mode, and compression options

Related Tools:

After setting texture settings, use Sprite Settings Applier for sprite-specific options
Use Sprite Cropper first to optimize memory before applying settings
Combine with Fit Texture Size to auto-adjust max texture sizes

Sprite Pivot Adjuster¶

Menu: Tools > Wallstop Studios > Unity Helpers > Sprite Pivot Adjuster

Purpose: Compute and apply alpha‑weighted center‑of‑mass pivots in bulk. Produces perceptually centered pivots (ignoring near‑transparent pixels) and speeds re‑imports by skipping unchanged results.

Key Features:

Alpha‑weighted center‑of‑mass pivot (configurable cutoff)
Optional sprite name regex filter
Skip unchanged (fuzzy threshold) and Force Reimport
Directory picker with recursive processing

Workflow:

Text Only

1) Open Sprite Pivot Adjuster
2) Add one or more directories
3) (Optional) Set Sprite Name Regex to filter
4) Adjust Alpha Cutoff (e.g., 0.01 to ignore fringe pixels)
5) Enable “Skip Unchanged” to reimport only when pivot changes
6) (Optional) Enable “Force Reimport” to override skip
7) Run the adjuster to write importer pivot values

Best For:

Ground‑aligning characters while keeping lateral centering
Consistent pivots across varied silhouettes
Normalizing pivots before animation creation

Visual Reference

Sprite Pivot Adjuster with alpha cutoff slider and directory selection

Sprite Settings Applier¶

Menu: Tools > Wallstop Studios > Unity Helpers > Sprite Settings Applier

Purpose: Apply sprite‑specific importer settings in bulk, driven by matchable “profiles” (Any/NameContains/PathContains/Regex/Extension) with priorities. Great for standardizing PPU, pivots, modes, and compression rules across large folders.

Profiles & Matching:

Create a SpriteSettingsProfileCollection ScriptableObject
Add one or more profiles (with priority) and choose a match mode:
Any, NameContains, PathContains, Extension, Regex
Higher priority wins when multiple profiles match

Key Settings (per profile):

Pixels Per Unit, Pivot, Sprite Mode
Generate Mip Maps, Read/Write, Alpha is Transparency
Extrude Edges, Wrap Mode, Filter Mode
Compression Level and Crunch Compression
Texture Type override (ensure Sprite)

Workflow:

Text Only

1) Create a SpriteSettingsProfileCollection (Assets > Create > … if available) or configure profiles in the window
2) Open Sprite Settings Applier
3) Add directories and/or explicit sprites
4) Choose which profile(s) to apply and click Set
5) Unity reimports affected sprites

Best For:

Enforcing project‑wide sprite import standards
Fixing inconsistent PPU/pivots automatically
Applying different settings per folder/pattern (via Regex/Path)

Visual Reference

Sprite Settings Applier with profile matching modes and import settings

Texture Resizer¶

Menu: Tools > Wallstop Studios > Unity Helpers > Texture Resizer

Purpose: Batch resize textures using bilinear or point filtering algorithms with configurable scaling multipliers.

Configuration Options:

textures: Manually selected textures to resize
textureSourcePaths: Drag folders to process all textures within
numResizes: Number of resize iterations to apply
scalingResizeAlgorithm: Bilinear (smooth) or Point (pixel-perfect)
pixelsPerUnit: Base PPU for scaling calculations
widthMultiplier: Width scaling factor (default: 0.54)
heightMultiplier: Height scaling factor (default: 0.245)

How It Works:

For each texture, calculates: extraWidth = width / (PPU * widthMultiplier)
Resizes to newSize = (width + extraWidth, height + extraHeight)
Repeats for numResizes iterations
Overwrites original PNG files

Workflow:

Text Only

1. Open Texture Resizer wizard
2. Add textures manually OR drag texture folders
3. Set algorithm (Bilinear for smooth, Point for pixel art)
4. Configure PPU and multipliers
5. Set number of resize passes
6. Click "Resize" to apply

Resize Algorithms:

Bilinear:

Smooth interpolation
Good for photographic/realistic textures
Prevents harsh edges
Slight blur on upscaling

Point:

Nearest-neighbor sampling
Perfect for pixel art
Maintains sharp edges
No interpolation blur

Best For:

Batch upscaling sprites
Standardizing texture dimensions
Preparing assets for specific PPU
Pixel art scaling (use Point)
Multiple resize passes for gradual scaling

Important Notes:

Destructive operation: Overwrites original files
Textures are made readable automatically
Changes are permanent (backup originals!)
AssetDatabase refreshes after completion

Visual Reference

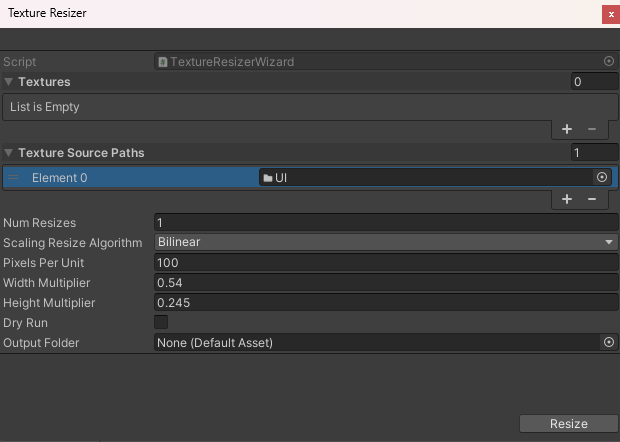

Texture Resizer with bilinear/point algorithm selection and multiplier settings

Fit Texture Size¶

Menu: Tools > Wallstop Studios > Unity Helpers > Fit Texture Size

Purpose: Automatically adjust texture max size import settings to match actual source dimensions (power-of-two).

Key Features:

Grow and Shrink: Adjust to perfect fit (default)
Grow Only: Only increase max size if too small
Shrink Only: Only decrease max size if too large
Preview mode: Calculate changes before applying
Batch processing: Process entire directories at once

Fit Modes:

GrowAndShrink:

Sets max texture size to the nearest power-of-2 that fits the source
Example: 1500x800 source → 2048 max size
Prevents both over-allocation and quality loss

GrowOnly:

Increases max size if the source is larger
Never decreases size
Useful for preventing quality loss on imports

ShrinkOnly:

Decreases max size if the source is smaller
Never increases size
Useful for reducing memory usage

Workflow:

Text Only

1. Open Fit Texture Size
2. Select Fit Mode (GrowAndShrink/GrowOnly/ShrinkOnly)
3. Add texture folders to process
4. Click "Calculate Potential Changes" to preview
5. Review how many textures will be modified
6. Click "Run Fit Texture Size" to apply

Example:

Text Only

Source Texture: 1920x1080 pixels
Current Max Size: 512
Fit Mode: GrowAndShrink
Result: Max Size → 2048 (fits source dimensions)

Source Texture: 64x64 pixels
Current Max Size: 2048
Fit Mode: ShrinkOnly
Result: Max Size → 64 (matches source)

Algorithm:

Reads actual source width/height (not imported size)
Calculates required power-of-2: size = max(width, height)
Rounds up to the next power-of-2 (32, 64, 128, 256, 512, 1024, 2048, 4096, 8192)
Applies based on fit mode constraints

Best For:

Fixing texture import settings after bulk imports
Optimizing memory usage automatically
Ensuring quality matches source resolution
Standardizing texture settings across the project
Build size optimization

Performance:

Non-destructive (only changes import settings)
Uses AssetDatabase batch editing for speed
Progress bar for large operations
Cancellable during processing

Visual Reference

Fit Texture Size with GrowAndShrink/GrowOnly/ShrinkOnly mode selection

Animation Tools¶

Sprite Animation Editor (Animation Viewer Window)¶

Menu: Tools > Wallstop Studios > Unity Helpers > Sprite Animation Editor

Purpose: Visual editor for 2D sprite animations with real-time preview and frame manipulation.

Key Features:

Real-time preview: See animations as you edit
Multi-layer support: Preview multiple clips simultaneously
Drag-and-drop reordering: Intuitive frame organization
FPS control: Adjust playback speed independently
Frame management: Add/remove/reorder/duplicate frames
Multi-file browser: Quick batch loading
Binding preservation: Maintains SpriteRenderer paths

Typical Workflow:

Text Only

1. Open Sprite Animation Editor
2. Click "Browse Clips (Multi)..." to select animations
3. Click a loaded clip in left panel to edit
4. Drag frames in "Frames" panel to reorder
5. Adjust FPS field and click "Apply FPS"
6. Preview updates in real-time
7. Click "Save Clip" to write changes

Example Session:

Text Only

// Edit walk cycle animation:
1. Load "PlayerWalk.anim"
2. Preview plays at original 12 FPS
3. Drag frame 3 to position 1 (change starting pose)
4. Change FPS to 10 for slower walk
5. Click "Apply FPS" to preview
6. Click "Save Clip" to finalize

Best For:

Tweaking animation timing without re-export
Creating variations by reordering frames
Previewing character animation sets
Testing different FPS values
Quick prototyping from sprite sheets
Fixing frame order mistakes

Tips:

Use the multi-file browser for entire animation sets
Preview updates automatically while dragging
FPS changes only affect the preview until saved
Type frame numbers for precise positioning
Press Enter to apply frame changes

Visual Demo

Drag-and-drop frame reordering with real-time preview updates

Adjusting FPS slider and seeing immediate preview speed change

Animation Creator¶

Menu: Tools > Wallstop Studios > Unity Helpers > Animation Creator

Purpose: Bulk‑create AnimationClips from sprite naming patterns — one‑click generation from folders of sprites. Eliminates manual clip setup and ensures consistent naming, ordering, and FPS/loop settings.

Problems Solved:

Manual and error‑prone clip creation from many sprites
Inconsistent frame ordering (lexicographic vs. numeric)
Collisions/duplicates when generating many clips at once
Repeating busywork when adding suffixes/prefixes across sets

Key Features:

Folder sources with regex sprite filtering (spriteNameRegex)
Auto‑parse into clips using naming patterns (one click)
Custom group regex with named groups (?<base>)(?<index>)
Case‑insensitive grouping and numeric sorting toggle
Prefix clip names with a leaf folder or full folder path
Auto‑parse name prefix/suffix and duplicate‑name resolution
Dry‑run and preview (see groups and final asset paths)
Per‑clip FPS and loop flag; bulk name append/remove
"Populate First Slot with X Matched Sprites" helper
Live preview: Real-time animation playback in the editor before committing
Variable framerate: Constant FPS or curve-based frame timing per clip

Framerate Modes:

Mode	Description
`Constant`	Fixed frames per second (default)
`Curve`	AnimationCurve-based timing for per-frame speed variation

Common Naming Patterns (auto‑detected):

Text Only

1
2
3

Player_Idle_0.png, Player_Idle_1.png, ...       // base: Player_Idle, index: 0..N
slime-walk-01.png, slime-walk-02.png            // base: slime-walk, index: 1..N
Mage/Attack (0).png, Mage/Attack (1).png        // base: Mage_Attack, index: 0..N (folder prefix optional)

Custom Group Regex Examples:

Text Only

1
2
3

// Named groups are optional but powerful when needed
^(?<base>.*?)(?:_|\s|-)?(?<index>\d+)\.[Pp][Nn][Gg]$   // base + trailing digits
^Enemy_(?<base>Walk)_(?<index>\d+)$                      // narrow to specific clip type

How To Use (one‑click flow):

Text Only

1) Open Animation Creator
2) Add one or more source folders
3) (Optional) Set sprite filter regex to narrow matches
4) Click “Auto‑Parse Matched Sprites into Animations”
5) Review generated Animation Data (set FPS/loop per clip)
6) Click “Create” (Action button) to write .anim assets

Preview & Safety:

Use “Generate Auto‑Parse Preview” to see detected groups
Use “Generate Dry‑Run Apply” to see final clip names/paths
Toggle “Strict Numeric Ordering” to avoid 1,10,11,2,… issues
Enable “Resolve Duplicate Animation Names” to auto‑rename

Tips:

Keep sprite names consistent (e.g., Name_Action_###)
Use the built‑in Regex Tester before applying
Use folder name/path prefixing to avoid collisions across sets
Batch rename tokens with the “Bulk Naming Operations” section

Best For:

One‑click bulk clip creation from sprite folders
Converting exported frame sequences into clips
Large projects standardizing animation naming and FPS/loop

Visual Demo

One-click auto-parse: sprites grouped by naming pattern, clips generated instantly

Related Tools:

After creating animations, edit timing with Sprite Animation Editor
Add events to created animations with Animation Event Editor
Organize animations between folders with Animation Copier
For sprite sheets (not sequences), use Sprite Sheet Animation Creator

Animation Copier¶

Menu: Tools > Wallstop Studios > Unity Helpers > Animation Copier

Purpose: Analyze, duplicate, and synchronize AnimationClips between source and destination folders with previews, dry‑runs, and cleanup actions.

What It Analyzes:

New: exist in the source but not the destination
Changed: exist in both but differ (hash mismatch)
Unchanged: identical in both (duplicates)
Destination Orphans: only in destination

Workflow:

Text Only

1) Open Animation Copier
2) Select Source Path (e.g., Assets/Sprites/Animations)
3) Select Destination Path (e.g., Assets/Animations)
4) Click “Analyze Source & Destination”
5) Review New/Changed/Unchanged/Orphans tabs (filter/sort)
6) Choose a copy mode:
   - Copy New / Copy Changed / Copy All (optional force replace)
7) (Optional) Dry Run to preview without writing
8) Use Cleanup:
   - Delete Unchanged Source Duplicates
   - Delete Destination Orphans

Safety & Options:

Dry Run (no changes) for all copy/cleanup operations
“Include Unchanged in Copy All” to force overwrite duplicates
Open Source/Destination folder buttons for quick navigation

Best For:

Creating animation variants and organizing libraries
Syncing generated clips into your canonical destination
Keeping animation folders tidy with cleanup actions

Visual Reference

Animation Copier with new/changed/unchanged/orphan tabs and copy actions

Sprite Sheet Animation Creator¶

Menu: Tools > Wallstop Studios > Unity Helpers > Sprite Sheet Animation Creator

Purpose: Turn a sliced sprite sheet into one or more AnimationClips with live preview, drag‑to‑select sprite ranges, and per‑clip FPS/loop/cycle offset.

Key Features:

Load a multi‑sprite Texture2D (sliced in the Sprite Editor)
Drag‑select sprite ranges to define clips visually
Constant FPS or curve‑based frame rate per clip
Live preview/playback controls and scrubbing
Loop toggle and cycle offset per clip
Safe asset creation with unique file names

Usage:

Text Only

1) Open Sprite Sheet Animation Creator
2) Drag a sliced Texture2D (or use the object field)
3) Select frames (drag across thumbnails) to define a clip
4) Name the clip, set FPS/curve, loop, cycle offset
5) Repeat to add multiple definitions
6) Click “Generate Animations” and choose output folder

Best For:

Converting sprite sheets to animation clips with fine control
Mixed timings using AnimationCurves for frame pacing
Fast iteration via visual selection and preview

Visual Demo

Drag-select frame ranges on sprite sheet thumbnails with instant preview playback

Sprite Sheet Extractor¶

Menu: Tools > Wallstop Studios > Unity Helpers > Sprite Sheet Extractor

Purpose: Extract individual sprites from sprite sheet textures and save them as separate PNG files with batch processing, preview, and optional reference replacement.

Key Features:

Multiple extraction modes: From existing metadata, grid-based, alpha detection, or padded grid
Auto-detection algorithms: Automatically detect optimal grid dimensions from transparency patterns
Pivot preservation: Maintain original pivot points or set custom pivots per sprite
Preview interface: Visual preview of all detected sprites before extraction
Batch processing: Process multiple sprite sheets at once
Reference replacement: Optionally update prefab/scene references to new sprites
Per-sheet configuration: Override global settings for individual sprite sheets
Config persistence: Save and load extraction settings per sprite sheet

Extraction Modes:

FromMetadata:

Uses existing Unity sprite metadata (SpriteImportMode.Multiple)
Preserves original names, rects, pivots, and borders
Best for already-sliced sprite sheets

GridBased:

Divides texture into uniform grid cells
Auto or manual grid dimensions
Good for evenly-spaced sprite sheets

AlphaDetection:

Analyzes transparency to find sprite boundaries
Works with irregular sprite layouts
Configurable alpha threshold

PaddedGrid:

Grid-based with configurable padding/gutters
Handles sprite sheets with spacing between cells

Pivot Modes:

Center: Pivot at sprite center (0.5, 0.5)
BottomCenter: Pivot at bottom center (0.5, 0)
TopCenter: Pivot at top center (0.5, 1)
LeftCenter: Pivot at left center (0, 0.5)
RightCenter: Pivot at right center (1, 0.5)
BottomLeft: Pivot at bottom left (0, 0)
BottomRight: Pivot at bottom right (1, 0)
TopLeft: Pivot at top left (0, 1)
TopRight: Pivot at top right (1, 1)
Custom: User-specified pivot coordinates

Workflow:

Text Only

1. Open Sprite Sheet Extractor
2. Add input directories containing sprite sheets
3. (Optional) Set sprite name regex filter
4. Configure extraction mode and settings
5. Click "Discover Sprite Sheets" to scan
6. Review detected sheets and sprites in preview
7. Adjust per-sheet settings if needed
8. Set output directory
9. Click "Extract" to generate individual sprites
10. (Optional) Use reference replacement for prefab updates

Best For:

Converting packed sprite sheets to individual assets
Preparing sprites for animation systems that expect separate files
Creating backup copies of individual sprites
Reorganizing sprite assets
Migrating from third-party sprite sheet formats

Tips:

Use "Snap to Texture Divisor" for cleaner grid alignment
Preview sprites before extraction to verify detection
Save per-sheet configs for consistent re-extraction
Enable reference replacement only with VCS backup
Use alpha detection for irregularly-spaced sprite sheets

Animation Event Editor¶

Menu: Tools > Wallstop Studios > Unity Helpers > AnimationEvent Editor

Purpose: Advanced visual editor for creating and managing animation events with sprite preview, method auto-discovery, and parameter editing.

Key Features:

Sprite preview: See the sprite at each event time
Method auto-discovery: Automatically finds valid animation event methods
Explicit mode: Restrict to methods marked with [AnimationEvent] attribute
Parameter editing: Visual editors for int, float, string, object, and enum parameters
Frame-based editing: Work with frame numbers instead of time values
Search filtering: Filter types and methods by search terms
Real-time validation: Shows invalid texture rects and read/write issues

Workflow:

Text Only

1. Open Animation Event Editor
2. Drag Animator component into "Animator Object" field
3. Select animation from dropdown (or use Animation Search)
4. Set "FrameIndex" for new event
5. Click "Add Event" to create event at that frame
6. Configure event:
   a. Select TypeName (MonoBehaviour with event methods)
   b. Select MethodName from available methods
   c. Set parameters (int, float, string, object, enum)
7. Reorder events if needed (Move Up/Down buttons)
8. Click "Save" to write changes to animation clip

Modes:

Explicit Mode (Default):

Only shows methods marked with [AnimationEvent] attribute
Cleaner, curated list of event methods
Recommended for large projects

Non-Explicit Mode:

Shows all public methods with valid signatures
Use the "Search" field to filter by type/method name
Good for discovery and prototyping

Control Frame Time:

Disabled: Work with frame indices (snaps to frames)
Enabled: Edit precise time values (floating point)

Sprite Preview:

Automatically shows sprite at event time
Requires texture Read/Write enabled
"Fix" button to enable Read/Write if needed
Warns if a sprite is packed too tightly

Event Management:

Adding Events:

Set "FrameIndex" to desired frame
Click "Add Event"
Event created at frame time

Editing Events:

Change frame/time directly
Select type and method from dropdowns
Edit parameters based on method signature
Override enum values if needed

Reordering:

"Move Up"/"Move Down" for events at the same time
"Re-Order" button sorts all events by time
Maintains proper event order for playback

Resetting:

Per-event "Reset" button (reverts to saved state)
Global "Reset" button (discards all changes)

Parameter Types Supported:

int - IntField editor
float - FloatField editor
string - TextField editor
UnityEngine.Object - ObjectField editor
Enum - Dropdown with an override option

Best For:

Complex animation event setup
Character combat systems
Footstep/sound effect events
Particle effect triggers
Animation state notifications
Visual debugging of event timing

Tips:

Enable "Explicit Mode" to reduce clutter
Use "Animation Search" for quick filtering
Frame numbers are more intuitive than time values
Sprite preview helps verify timing
Multiple events can exist at the same frame
Use "Re-Order" before saving for consistency

Common Method Signatures:

C#
using WallstopStudios.UnityHelpers.Core.Attributes;

public class CharacterAnimationEvents : MonoBehaviour
{
    [AnimationEvent]  // Shows in Explicit Mode
    public void PlayFootstep() { }

    [AnimationEvent]
    public void SpawnEffect(string effectName) { }

    [AnimationEvent]
    public void ApplyDamage(int damage) { }

    [AnimationEvent]
    public void SetAnimationState(CharacterState state) { }  // Enum parameter
}

Sprite Atlas Tools¶

Sprite Atlas Generator¶

Menu: Tools > Wallstop Studios > Unity Helpers > Sprite Atlas Generator

Purpose: Comprehensive tool for creating and managing Unity Sprite Atlases with regex-based sprite selection, label filtering, and automated packing.

Key Features:

Regex-based sprite selection: Use regular expressions to automatically find sprites
Label filtering: Select sprites based on Unity asset labels
Multiple source folders: Configure different folders with different selection criteria
Batch atlas generation: Create/update multiple atlases at once
Advanced packing settings: Control texture size, compression, padding, rotation
Source sprite utilities: Force uncompressed settings for source sprites
Scan and preview: See what sprites will be added/removed before applying changes

Configuration Asset: Create configurations via Assets > Create > Wallstop Studios > Unity Helpers > Scriptable Sprite Atlas Config

ScriptableSpriteAtlas Configuration:

Text Only

Sprite Sources:
- spritesToPack: Manually added sprites (always included)
- sourceFolderEntries: Define folders with regex/label filters

Source Folder Entry Options:
- folderPath: Folder to scan (relative to Assets/)
- selectionMode: Regex | Labels | Both
- regexes: List of regex patterns (all must match - AND logic)
- regexAndTagLogic: How to combine regex and labels (And/Or)
- labelSelectionMode: All | AnyOf
- labels: Asset labels to filter by

Output Atlas Settings:
- outputSpriteAtlasDirectory: Where to save .spriteatlas
- outputSpriteAtlasName: Name of atlas file

Packing Settings:
- maxTextureSize: 32-16384 (power of 2)
- enableRotation: Allow sprite rotation for better packing
- padding: Pixels between sprites (0-32)
- enableTightPacking: Optimize packing density
- enableAlphaDilation: Dilate alpha edges
- readWriteEnabled: Enable Read/Write on atlas texture

Compression Settings:
- useCrunchCompression: Enable crunch compression
- crunchCompressionLevel: 0-100 quality
- compression: Compressed/CompressedHQ/Uncompressed

Typical Workflow:

Text Only

1. Open Sprite Atlas Generator
2. Click "Create New Config in 'Assets/Data'"
3. Configure the new atlas:
   a. Set output name and directory
   b. Click "Add New Source Folder Entry"
   c. Select folder containing sprites
   d. Add regex patterns (e.g., "^character_.*\\.png$")
   e. Or/and add labels for filtering
   f. Configure packing settings (texture size, padding, etc.)
4. Click "Scan Folders for '[config name]'"
5. Review sprites to add/remove
6. Click "Add X Sprites" to populate the list
7. Click "Generate/Update '[atlas name].spriteatlas' ONLY"
8. Click "Pack All Generated Sprite Atlases" to pack textures

Example Configurations:

Character Sprites Atlas:

Text Only
1 2 3 4 5 6	`folderPath: Assets/Sprites/Characters selectionMode: Regex regexes: ["^player_.\\.png$", "._idle_.*"] maxTextureSize: 2048 padding: 4 compression: CompressedHQ`

UI Icons by Label:

Text Only
1 2 3 4 5 6	`folderPath: Assets/Sprites/UI selectionMode: Labels labelSelectionMode: AnyOf labels: ["icon", "ui"] maxTextureSize: 1024 padding: 2`

Combined Regex + Labels:

Text Only
1 2 3 4 5 6	`folderPath: Assets/Sprites/Effects selectionMode: Regex \| Labels regexes: ["^vfx_.*"] labels: ["particle"] regexAndTagLogic: And maxTextureSize: 2048`

Advanced Features:

Scan and Preview:

Shows the exact sprite count that will be added/removed
Prevents accidental overwrites
Displays current vs. scanned sprite lists

Source Sprite Utilities:

"Force Uncompressed for X Source Sprites" button
Sets source sprites to uncompressed (RGBA32/RGB24)
Disables crunch compression on sources
Ensures maximum quality before atlas packing

Batch Operations:

"Generate/Update All .spriteatlas Assets" - processes all configs
"Pack All Generated Sprite Atlases" - packs all atlases in the project
Progress bars for long operations

Best For:

Managing large sprite collections
Automating sprite atlas creation
Consistent atlas configuration across the team
Dynamic sprite selection based on naming conventions
Organizing sprites by labels/tags
Build pipeline atlas generation

Tips:

Use regex for consistent naming patterns
Combine multiple source folders for complex selections
Test regex patterns with "Scan Folders" before generating
Keep source sprites uncompressed for the best atlas quality
Use labels for cross-folder sprite grouping
Regular expressions use case-insensitive matching

Common Issues:

No sprites found: Check regex patterns and folder paths
Sprites not packing: Run "Pack All Generated Sprite Atlases"
Quality issues: Use "Force Uncompressed" on source sprites
Regex errors: Validate patterns (will log specific errors)

Visual Reference

Sprite Atlas Generator with regex-based sprite selection and packing settings

Scanning folders and previewing which sprites will be added to the atlas

Validation & Quality Tools¶

Prefab Checker¶

Menu: Tools > Wallstop Studios > Unity Helpers > Prefab Checker

Purpose: Comprehensive prefab validation to detect configuration issues before runtime.

Validation Checks:

Check	Description	Severity
Missing Scripts	Detects broken MonoBehaviour references	Critical
Nulls in Lists/Arrays	Finds null elements in serialized collections	High
Missing Required Components	Validates [RequireComponent] dependencies	Critical
Empty String Fields	Identifies unset string fields	Medium
Null Object References	Finds unassigned UnityEngine.Object fields	High
Only if [ValidateAssignment]	Restricts null checks to annotated fields	Configurable
Disabled Root GameObject	Flags inactive prefab roots	Medium
Disabled Components	Reports disabled Behaviour components	Low

Typical Validation Workflow:

Text Only

// Before committing prefab changes:
1. Open Prefab Checker
2. Enable relevant checks (especially Missing Scripts, Required Components)
3. Add "Assets/Prefabs" folder
4. Click "Run Checks"
5. Review console output (click to select problematic prefabs)
6. Fix reported issues
7. Re-run checks to verify
8. Commit changes

CI/CD Integration:

Text Only
1 2 3 4	`// Can be scripted for automated builds - Run validation on changed prefab folders - Parse console output for errors - Fail build if critical issues found`

Best Practices:

Use [ValidateAssignment] attribute on critical fields
Run checks before committing prefab changes
Enable "Only if [ValidateAssignment]" to reduce noise
Fix "Missing Required Components" errors immediately
Schedule regular validation runs

Performance: Uses cached reflection for fast repeated checks.

Best For:

Pre-build validation
Code review assistance
Team onboarding with prefab standards
Migration validation after Unity upgrades
Continuous integration health checks

Visual Reference

Prefab Checker with configurable validation checks and folder selection

Console output showing detected prefab issues with clickable links

Unity Method Analyzer¶

Menu: Tools > Wallstop Studios > Unity Helpers > Unity Method Analyzer

Purpose: Detect inheritance issues and Unity lifecycle method errors across your entire C# codebase before they cause runtime bugs.

📖 Full Documentation: Unity Method Analyzer Guide

Key Features:

Static analysis without external dependencies (no Roslyn required)
Parallel scanning of thousands of files
Multiple issue categories: Unity Lifecycle, Unity Inheritance, General Inheritance
Five severity levels: Critical, High, Medium, Low, Info
Export options: JSON and Markdown for CI/CD integration
Flexible filtering: By severity, category, or free-text search

What It Detects:

Issue Type	Example
Missing `override` keyword	Hiding base method instead of overriding
Wrong Unity method signature	`OnCollisionEnter(Collider c)` instead of `OnCollisionEnter(Collision c)`
Shadowed lifecycle methods	Both base and derived class have `private void Start()`
Static lifecycle methods	`static void Awake()` won't be called by Unity

Quick Start:

Text Only

1. Open Unity Method Analyzer
2. Add source directories (e.g., Assets/Scripts)
3. Click "Analyze Code"
4. Review issues grouped by file, severity, or category
5. Double-click to navigate to problematic code
6. Export report for team review or CI/CD

Visual Demo

The analyzer scanning a project and displaying categorized issues

Suppressing Warnings:

For test code or intentional patterns, use [SuppressAnalyzer]:

C#
[SuppressAnalyzer("Test fixture for analyzer validation")]
public class TestClassWithIntentionalIssues : BaseClass
{
    public void HiddenMethod() { }  // Won't trigger warning
}

Best For:

Pre-commit code validation
Code review assistance
CI/CD quality gates
Team onboarding
Post-refactoring verification

Custom Component Editors¶

These custom inspectors enhance Unity components with additional functionality and convenience features.

MatchColliderToSprite Editor¶

Component: MatchColliderToSprite

Purpose: Provides a button in the inspector to manually trigger collider-to-sprite matching.

Features:

"MatchColliderToSprite" button in inspector
Manually invoke OnValidate() to update collider
Useful when automatic updates don't trigger

When to Use:

After changing sprite at runtime
When collider doesn't match sprite automatically
Manual override of collider shape

PolygonCollider2DOptimizer Editor¶

Component: PolygonCollider2DOptimizer

Purpose: Custom inspector for optimizing PolygonCollider2D point counts with configurable tolerance.

Features:

tolerance: Adjustable simplification tolerance
Optimize button: Manually trigger polygon simplification
Reduces collider complexity while maintaining shape

How It Works:

Adjust tolerance slider (lower = more accurate, higher = simpler)
Click "Optimize" to simplify polygon points
Collider updates with a reduced point count

Best For:

Reducing physics performance overhead
Simplifying complex sprite colliders
Balancing accuracy vs. performance
Editor-time optimization of imported sprites

Tolerance Guide:

0.0 - 0.1: High accuracy, minimal simplification
0.1 - 0.5: Balanced (recommended)
0.5 - 2.0: Aggressive simplification
2.0+: Maximum simplification (may lose detail)

EnhancedImage Editor¶

Component: EnhancedImage (extends Unity's Image)

Purpose: Extended inspector for EnhancedImage with HDR color support and shape mask configuration.

Additional Properties:

HDR Color: High dynamic range color multiplication
Shape Mask: Texture2D for masking/shaping the image
Material Auto-Fix: Detects and fixes incorrect material assignment

Features:

Material Detection:

Warns if using "Default UI Material"
"Incorrect Material Detected - Try Fix?" button (yellow)
Automatically finds and applies the correct BackgroundMask material
Material path: Shaders/Materials/BackgroundMask-Material.mat

Shape Mask:

Requires shader with _ShapeMask texture2D property
Allows complex masking effects
Integrates with a custom shader system

HDR Color:

Color picker with HDR support
Intensity values > 1.0 for bloom/glow effects
Works with post-processing

Best For:

UI elements requiring HDR effects
Masked UI images
Custom-shaped UI elements
Material-based UI effects

Workflow:

Text Only

1. Add EnhancedImage component to UI GameObject
2. If yellow "Fix Material" button appears, click it
3. Configure HDR Color for glow/intensity
4. Assign Shape Mask texture if needed
5. Shader must expose _ShapeMask property

Icon Customization:

Automatically uses Image icon in project/hierarchy
Seamless integration with standard Unity UI

Property Drawers & Attributes¶

Custom property drawers enhance the inspector with conditional display, validation, and specialized input fields.

WInLineEditor Property Drawer¶

Attribute: [WInLineEditor]

Purpose: Embed the inspector for object references (ScriptableObjects, Materials, Components, Textures, etc.) directly below the field so you can edit configuration without losing context.

Modes (WInLineEditorMode):

AlwaysExpanded — always draws the inline inspector.
FoldoutExpanded — shows a foldout that starts expanded.
FoldoutCollapsed — shows a foldout that starts collapsed.

Options: tune the presentation with constructor parameters:

inspectorHeight (default 200, min 160) — vertical space reserved for the inspector body.
drawObjectField — hide or show the object picker next to the label.
drawHeader — draw a bold header with a ping button (ping is shown only while a Project window tab is visible).
drawPreview & previewHeight — render the preview area when the target editor exposes one.
enableScrolling — wrap the inspector body in a scroll view for long inspectors.
minInspectorWidth (default 520) — when the content area is narrower than this width, a horizontal scrollbar appears; set to 0 to disable the safeguard.

WInLineEditor respects the Inline Editors defaults inside Unity Helpers Settings. Leave the mode argument unset to inherit the global foldout behaviour, or supply a WInLineEditorMode per field to override it. By default, Inline Editors start collapsed to mirror collapsible WGroups, so [WInLineEditor] without a mode expands only when you opt into a different setting.

Examples:

C#
public class AbilityConfig : ScriptableObject
{
    public string displayName;
    public float cooldown;
}

public class AbilityDatabase : ScriptableObject
{
    [WInLineEditor] public AbilityConfig defaultConfig;

    [WInLineEditor(
        WInLineEditorMode.FoldoutCollapsed,
        inspectorHeight: 180f,
        drawPreview: true,
        previewHeight: 64f)]
    public Texture2D abilityIcon;

    [WInLineEditor(
        WInLineEditorMode.AlwaysExpanded,
        inspectorHeight: 220f,
        drawObjectField: false,
        enableScrolling: false)]
    public AbilityConfig sharedTemplate;
}

Features:

Bespoke implementation (no Odin dependency) tailored to the most common inline editing workflows.
Reuses Unity’s native editors, respecting custom inspectors, validation, and undo.
Optional scroll view that keeps large inspectors usable without stealing space from the parent inspector.
Preview support for assets that implement HasPreviewGUI.
Header includes a quick “Ping” button so you can jump to the asset whenever the Project window is visible.
Smooth expand/collapse animations with configurable speed.

Animation Settings:

Foldout animations are controlled via Unity Helpers Settings (Edit > Project Settings > Unity Helpers):

InlineEditorFoldoutTweenEnabled — Enable/disable smooth expand/collapse animations (default: true)
InlineEditorFoldoutSpeed — Animation speed from 2.0 to 12.0 (default: 2.0)

C#
using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;

public class AbilityConfig : ScriptableObject
{
    public string abilityName;
    public Sprite icon;
    public float cooldown;
}

public class WInLineEditorExample : MonoBehaviour
{
    // Animation applies to foldout modes only
    [WInLineEditor(WInLineEditorMode.FoldoutCollapsed)] // Animated
    public AbilityConfig animatedFoldout;

    [WInLineEditor(WInLineEditorMode.AlwaysExpanded)] // No animation (always visible)
    public AbilityConfig alwaysVisible;
}

See also: Inspector Settings Reference for complete settings documentation.

Visual Reference

WInLineEditor with embedded inspector for a ScriptableObject reference with foldout and collapse transitions

WShowIf Property Drawer¶

Attribute: [WShowIf]

Purpose: Conditionally show/hide fields in inspector based on boolean fields or enum values.

Syntax:

C#
[WShowIf(nameof(fieldName))]
[WShowIf(nameof(fieldName), inverse = true)]
[WShowIf(nameof(fieldName), expectedValues: new object[] { value1, value2 })]
[WShowIf(nameof(numericField), WShowIfComparison.GreaterThan, 10)]
[WShowIf(nameof(stringField), WShowIfComparison.IsNotNullOrEmpty)]
[WShowIf(nameof(parentField) + "." + nameof(ChildType.someFlag))]

WShowIfComparison.Unknown exists only for backward compatibility and is marked obsolete; always choose an explicit comparison mode.

Examples:

Boolean Condition:

C#
public bool enableFeature;

[WShowIf(nameof(enableFeature))]
public float featureIntensity;

[WShowIf(nameof(enableFeature), inverse = true)]
public string disabledMessage;

Enum Condition:

C#
public enum Mode { Simple, Advanced, Expert }
public Mode currentMode;

[WShowIf(nameof(currentMode), expectedValues = new object[] { Mode.Advanced, Mode.Expert })]
public int advancedSetting;

Multiple Values:

C#
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Serialization;
using WallstopStudios.UnityHelpers.Core.Attributes;
using WallstopStudios.UnityHelpers.Core.DataStructure.Adapters;
using WallstopStudios.UnityHelpers.Editor.Sprites;

public class SelectionModeExample : MonoBehaviour
{
    public SpriteSelectionMode selectionMode;

    [WShowIf(
        nameof(selectionMode),
        expectedValues = new object[]
        {
            SpriteSelectionMode.Regex,
            SpriteSelectionMode.Regex | SpriteSelectionMode.Labels,
        }
    )]
    public List<string> regexPatterns;

    [FormerlySerializedAs("regexPatterns")]
    [WShowIf(
        nameof(selectionMode),
        expectedValues = new object[]
        {
            SpriteSelectionMode.Regex,
            SpriteSelectionMode.Regex | SpriteSelectionMode.Labels,
        }
    )]
    public SerializableHashSet<string> regexPatterns1;

    [WShowIf(
        nameof(selectionMode),
        expectedValues = new object[]
        {
            SpriteSelectionMode.Regex,
            SpriteSelectionMode.Regex | SpriteSelectionMode.Labels,
        }
    )]
    public SerializableDictionary<int, string> regexPatterns2;

    public bool someOtherField;
}

Features:

Hides field when condition false (0 height)
Supports boolean, enum, numeric, any IComparable/IComparable<T> type, null, and string/collection comparisons
Allows referencing nested paths, properties, and parameterless methods
inverse parameter inverts any comparison result
expectedValues (or params arguments) for equality checks without manual arrays
Falls back to reflection for non-SerializedProperty fields
Cached reflection for performance

Best For:

Conditional inspector fields
Reducing inspector clutter
Mode-based configuration UI
Complex nested settings

Visual Reference

Field appears/disappears based on enum toggle state

StringInList Property Drawer¶

Attribute: [StringInList]

Purpose: Display string or int fields as dropdown with predefined options.

Syntax:

C#
// Static array
[StringInList("Option1", "Option2", "Option3")]
public string selectedOption;

// Method reference
[StringInList(typeof(MyClass), nameof(MyClass.GetOptions))]
public string dynamicOption;

// With int field
[StringInList("Low", "Medium", "High")]
public int priorityIndex;

Dynamic Options Example:

C#
using WallstopStudios.UnityHelpers.Core.Helper;

public class MySettings
{
    [StringInList(typeof(Helpers), nameof(Helpers.GetAllSpriteLabelNames))]
    public List<string> selectedLabels;
}

Features:

String fields: Dropdown with string values
Int fields: Dropdown with indices
Arrays/Lists: UI Toolkit list view with per-element dropdowns, add/remove, and drag-to-reorder
Dynamic lists via static method reference
Search/filter with lightweight autocomplete (Tab auto-completes and assigns, Enter just fills the search)
Inline hint beneath the search box shows the current best match for quick Tab acceptance
Pagination automatically appears when the option count exceeds the configured page size
Page size configurable via Project Settings ▸ Wallstop Studios ▸ Unity Helpers ▸ StringInList Page Size
Auto-finds current value in list
The same search + pagination experience is reused by SerializableType, so adjusting the page size updates both drawers

Best For:

Predefined option selection
Tag/label selection
Enum-like string fields
Dynamic option lists
User-friendly enumerations

C#
using System.Collections.Generic;
using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;

public class StringInListExample : MonoBehaviour
{
    [StringInList(typeof(StringInListExample), nameof(GetValues))]
    public string value;

    private IEnumerable<string> GetValues()
    {
        yield return "A";
        yield return "B";
        yield return "C";
        yield return "D";
    }
}

Visual Reference

StringInList dropdown showing search filtering and pagination

C#
using System.Collections.Generic;
using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;

public class StringInListExample : MonoBehaviour
{
    [StringInList(typeof(StringInListExample), nameof(GetValues))]
    public string value;

    private IEnumerable<string> GetValues()
    {
        yield return "A";
        yield return "B";
        yield return "C";
        yield return "D";
    }
}

Visual Reference

StringInList on a List field with per-element dropdowns and drag reordering

IntDropdown Property Drawer¶

Attribute: [IntDropdown]

Purpose: Display int fields as dropdown with specific integer options.

Syntax:

C#
[IntDropdown(32, 64, 128, 256, 512, 1024, 2048, 4096, 8192)]
public int textureSize;

[IntDropdown(0, 2, 4, 8, 16, 32)]
public int padding;

Features:

Restricts int values to specific options
Dropdown shows integer values as strings
Prevents invalid values
Visual clarity for constrained integers

Best For:

Power-of-two values (texture sizes)
Discrete numeric options
Preventing invalid integer input
Configuration with specific valid values

Common Use Cases:

C#
using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;

public class IntDropDownExample : MonoBehaviour
{
    // Texture sizes (power of 2)
    [IntDropDown(32, 64, 128, 256, 512, 1024, 2048, 4096, 8192, 16384)]
    public int maxTextureSize = 2048;

    // Padding options
    [IntDropDown(0, 2, 4, 8, 16, 32)]
    public int spritePadding = 4;

    // Quality levels
    [IntDropDown(0, 1, 2, 3, 4, 5)]
    public int qualityLevel = 3;
}

Visual Reference

IntDropDown for texture sizes showing power-of-two options

WValueDropDown Property Drawer¶

Attribute: [WValueDropDown]

Purpose: Generic dropdown for any type with fixed values or provider methods. More flexible than StringInList or IntDropdown — supports all primitive types, custom classes, and dynamic providers.

Syntax:

C#
// Fixed primitive values
[WValueDropDown(0, 25, 50, 100)]
public int staminaThreshold = 50;

[WValueDropDown(0.5f, 1.0f, 1.5f, 2.0f)]
public float damageMultiplier = 1.0f;

[WValueDropDown("Easy", "Normal", "Hard", "Insane")]
public string difficulty = "Normal";

// Static provider method
[WValueDropDown(typeof(PowerUpLibrary), nameof(PowerUpLibrary.GetAvailablePowerUps))]
public PowerUpDefinition selectedPowerUp;

// Instance provider method (context-aware)
[WValueDropDown(nameof(GetAvailableOptions), typeof(string))]
public string selectedOption;

Features:

All primitive types: bool, char, byte, sbyte, short, ushort, int, uint, long, ulong, float, double, string
Custom types with ToString() for labels
Static provider methods from any type
Instance provider methods for context-aware options
Type-safe value selection

Best For:

Type-safe options beyond strings/ints
Custom class/struct selection
Dynamic options from runtime data
Designer-friendly preset selection

Custom Types Example:

C#
using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;
using System.Collections.Generic;

[System.Serializable]
public class Preset
{
    public string name;
    public float value;

    public override string ToString() => name;  // Used for dropdown label
}

public class Config : MonoBehaviour
{
    [WValueDropDown(typeof(Config), nameof(GetPresets))]
    public Preset selectedPreset;

    public static IEnumerable<Preset> GetPresets()
    {
        return new[]
        {
            new Preset { name = "Low", value = 0.5f },
            new Preset { name = "Medium", value = 1.0f },
            new Preset { name = "High", value = 2.0f },
        };
    }
}

Instance Provider Example:

C#
public class DynamicOptions : MonoBehaviour
{
    public string prefix = "Option";
    public int optionCount = 5;

    [WValueDropDown(nameof(GetAvailableOptions), typeof(string))]
    public string selectedOption;

    private IEnumerable<string> GetAvailableOptions()
    {
        for (int i = 1; i <= optionCount; i++)
        {
            yield return $"{prefix}_{i}";
        }
    }
}

Visual Reference

WValueDropDown showing predefined integer, float, and string values

For more detailed documentation, including all constructor forms, see Inspector Selection Attributes.

WReadOnly Property Drawer¶

Attribute: [WReadOnly]

Purpose: Display fields as read-only in the inspector (grayed out, non-editable).

Syntax:

C#
using WallstopStudios.UnityHelpers.Core.Attributes;

[WReadOnly]
public int calculatedValue;

[WReadOnly]
public string currentState;

Features:

Disables GUI for field
Shows value but prevents editing
Maintains proper height and layout
Works with all property types

Best For:

Displaying runtime state
Showing calculated/derived values
Debug information in inspector
Values set by code only

Example:

C#
using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;

public class WReadOnlyExample : MonoBehaviour
{
    public int baseHealth = 100;
    public int healthBonus = 0;

    [WReadOnly]
    public int totalHealth;

    private void OnValidate()
    {
        totalHealth = baseHealth + healthBonus;
    }
}

Visual Reference

WReadOnly field showing totalHealth as a non-editable calculated value

For detailed documentation on validation attributes, see Inspector Validation Attributes.

Automation & Utilities¶

ScriptableObject Singleton Creator¶

Type: Automatic (runs on editor load) Menu: N/A (automatic) - Uses [InitializeOnLoad]

Purpose: Automatically creates and maintains singleton ScriptableObject assets.

See the base API guide for details on ScriptableObjectSingleton<T> usage, scenarios, and Odin compatibility: Singleton Utilities.

How It Works:

Text Only

1. Runs when Unity editor starts
2. Scans all ScriptableObjectSingleton<T> derived types
3. Creates missing assets in Assets/Resources/
4. Moves misplaced singletons to correct locations
5. Respects [ScriptableSingletonPath] attribute

Usage Example:

C#
using WallstopStudios.UnityHelpers.Utils;
using WallstopStudios.UnityHelpers.Core.Attributes;

// Define singleton:
public class GameSettings : ScriptableObjectSingleton<GameSettings>
{
    public float masterVolume = 1.0f;
    public bool enableVSync = true;
}

// Optional custom path:
[ScriptableSingletonPath("Settings/Audio")]
public class AudioSettings : ScriptableObjectSingleton<AudioSettings>
{
    public float musicVolume = 0.8f;
}

// Assets created automatically:
// - Assets/Resources/GameSettings.asset
// - Assets/Resources/Settings/Audio/AudioSettings.asset

// Access at runtime:
float volume = GameSettings.Instance.masterVolume;

Folder Structure:

Text Only
1 2 3 4 5 6	`Assets/ Resources/ GameSettings.asset (no path attribute) Settings/ Audio/ ([ScriptableSingletonPath("Settings/Audio")]) AudioSettings.asset`

Best For:

Managing game settings as unique assets
Centralizing configuration data
Ensuring essential ScriptableObjects exist
Team workflows to prevent missing asset errors
Automatic project setup for new developers

Customization:

Set IncludeTestAssemblies = true to create test singletons
Call EnsureSingletonAssets() manually to refresh

Sprite Label Processor¶

Type: Automatic asset processor Menu: N/A (automatic) - Uses AssetPostprocessor

Purpose: Automatically maintains a cache of all sprite labels in the project for fast lookup in editor tools.

How It Works:

Monitors sprite asset imports/reimports (PNG, JPG, JPEG)
Detects changes to asset labels on sprites
Updates global sprite label cache automatically
Provides a cached label list to tools like Sprite Atlas Generator

What Gets Cached:

All unique asset labels across sprite assets
Sorted alphabetically for a consistent display
Updated on import, not at runtime

Performance Benefits:

✅ No need to scan the entire project for labels
✅ Fast dropdown population in editors
✅ Automatic cache invalidation on changes
✅ Only processes sprite texture types

Runtime Usage:

C#
using WallstopStudios.UnityHelpers.Core.Helper;

// Access cached sprite labels
string[] labels = SpriteLabelCache.GetAllLabels();

Request Script Compilation¶

Menu: Tools > Wallstop Studios > Unity Helpers > Request Script Compilation Shortcut: Ctrl/Cmd + Alt + R (configurable in Unity's Shortcut Manager)

Purpose: Manually trigger Unity script recompilation without needing to modify files or restart the editor.

Visual Reference

Key Features:

One-click script recompilation
Customizable keyboard shortcut (default: Ctrl/Cmd + Alt + R)
Useful after external code generation or build processes
Available in Unity's Shortcut Manager under "Wallstop Studios / Request Script Compilation"

When to Use:

After external code generation tools modify scripts
When Unity doesn't auto-detect file changes
To force recompilation without touching files
In automated workflows that need explicit compilation steps

Common Workflow:

Text Only
1 2 3 4	`1. Run external code generator 2. Press Ctrl+Alt+R (or use menu item) 3. Wait for Unity to recompile scripts 4. Continue working with updated code`

Project Settings: Unity Helpers¶

Menu: Edit > Project Settings > Wallstop Studios > Unity Helpers

Purpose: Centralized configuration for Unity Helpers features, including buffer settings, pagination defaults, and inspector behavior.

Visual Reference

Centralized configuration panel in Unity's Project Settings

Key Settings:

Coroutine Wait Buffer Defaults¶

Configure default behavior for WaitForSeconds, WaitForFixedUpdate, and other yield instructions:

C#
// Settings affect runtime buffer pool behavior:
- Quantization: How yield times are rounded (e.g., 0.1f rounds to nearest 0.1)
- Entry Caps: Maximum number of cached wait instructions per type
- LRU Mode: Least-recently-used eviction when caps are exceeded

Impact:

Reduces GC allocations from repeated coroutine yields
Settings apply automatically on domain reload and player start
Can be overridden at runtime if needed

Generated Asset: Resources/WallstopStudios/UnityHelpers/UnityHelpersBufferSettings.asset

Inspector Pagination Defaults¶

StringInListPageSize: Default page size for StringInList dropdowns (default: 50)
WEnumToggleButtonsPageSize: Default page size for enum toggle button grids (default: 20)
Per-attribute overrides available on individual fields

When to Adjust:

Large option lists feel cramped (increase page size)
Inspector feels sluggish with many options (decrease page size)
Project-wide consistency for dropdown/toggle experiences

Runtime Usage:

C#
using WallstopStudios.UnityHelpers.Core.Helper;

// Get all known sprite labels
string[] allLabels = Helpers.GetAllSpriteLabelNames();

// Used internally by StringInList attribute
[StringInList(typeof(Helpers), nameof(Helpers.GetAllSpriteLabelNames))]
public List<string> selectedLabels;

Cache Updates:

On sprite import/reimport
When labels added/removed from sprites
After asset database refresh
Automatically during asset post-processing

Best For:

Tools requiring sprite label selection
DropDown menus for label filtering
Maintaining label consistency across the project
Fast label-based sprite queries

Technical Notes:

Skips execution in batch mode and CI environments
Uses efficient HashSet for uniqueness checks
Sorted results for a consistent UI display
Thread-safe cache updates

Attribute Metadata Cache Generator¶

Type: Automatic (runs on editor load and domain reload)

Purpose: Pre-generate attribute system metadata at edit time to eliminate runtime reflection overhead. The cache is automatically regenerated when scripts change. You can manually refresh it via the "Purge & Refresh Cache" button in the AttributeMetadataCache asset inspector.

What Gets Cached:

All "Attribute" fields across AttributesComponent types
Relational metadata ([ParentComponent], [ChildComponent], [SiblingComponent])
Assembly-qualified type names for runtime resolution
Field types (single, array, List, HashSet)
Interface detection for polymorphic queries

Performance Benefits:

✅ Eliminates reflection overhead during attribute initialization
✅ Reduces first-frame lag when attribute components awake
✅ Enables fast attribute name lookups for UI
✅ Optimizes relational component queries
✅ Supports IL2CPP ahead-of-time compilation

Runtime Usage:

C#
// Cache is loaded automatically:
AttributeMetadataCache cache = AttributeMetadataCache.Instance;

// Get all known attribute names:
string[] allAttributes = cache.AllAttributeNames;

// Check type for attribute fields:
TypeFieldMetadata metadata = cache.GetMetadataForType(typeof(MyAttributesComponent));
if (metadata != null)
{
    foreach (string fieldName in metadata.AttributeFieldNames)
    {
        Debug.Log($"Found attribute field: {fieldName}");
    }
}

// Query relational component metadata:
RelationalTypeMetadata relational = cache.GetRelationalMetadataForType(typeof(MyComponent));

Cache Regenerates:

On Unity editor startup (automatic)
After script recompilation (automatic)
Manual trigger via menu item
After domain reload in the editor

Best For:

Large projects with many attribute-based components
Games using extensive parent/child relationships
Optimizing startup time for complex prefabs
IL2CPP builds where reflection is expensive
Tools that need to enumerate available attributes

Editor Utilities¶

Type: Static utility class Namespace: WallstopStudios.UnityHelpers.Editor.Utils

Purpose: Helper methods for Unity Editor operations.

Available Methods:

`GetCurrentPathOfProjectWindow()`¶

Gets the currently selected folder in Unity's Project window.

C#
// In an editor window or wizard:
string currentFolder = EditorUtilities.GetCurrentPathOfProjectWindow();
if (!string.IsNullOrEmpty(currentFolder))
{
    string newAssetPath = $"{currentFolder}/NewGeneratedAsset.asset";
    AssetDatabase.CreateAsset(myAsset, newAssetPath);
}
else
{
    // Fallback to default location
    AssetDatabase.CreateAsset(myAsset, "Assets/NewGeneratedAsset.asset");
}

Returns: Asset-relative path (e.g., "Assets/Scripts/Editor") or empty string.

Use Cases:

Asset creation wizards defaulting to the selected folder
Context menu extensions operating on the current location
Batch processing tools respecting working directory

Technical Notes:

Uses reflection to access internal Unity API
May break in future Unity versions
Returns empty string on failure (no exceptions)

Best For:

Context-aware asset creation
User-friendly editor tools
Respecting the current working directory

Quick Reference¶

Tools by Category¶

Image Processing:

Image Blur Tool - Gaussian blur effects
Sprite Cropper - Remove transparent padding
Texture Settings Applier - Batch import settings
Sprite Settings Applier - Sprite-specific settings
Sprite Pivot Adjuster - Pivot point adjustment
Texture Resizer - Resize textures with bilinear/point algorithms
Fit Texture Size - Auto-fit texture max size to source dimensions

Animation:

Sprite Animation Editor - Visual animation editing with preview
Animation Event Editor - Visual animation event editing with sprite preview
Animation Creator - Bulk-create clips from naming patterns
Animation Copier - Duplicate and manage clips
Sprite Sheet Animation Creator - Convert atlases to clips

Sprite Atlases:

Sprite Atlas Generator - Regex/label-based atlas creation and packing

Quality & Validation:

Prefab Checker - Comprehensive prefab validation

Custom Editors:

MatchColliderToSprite Editor - Manual collider matching
PolygonCollider2DOptimizer Editor - Collider simplification
EnhancedImage Editor - HDR color and shape mask support

Property Drawers:

WShowIf - Conditional field visibility
StringInList - DropDown selection for strings
IntDropDown - DropDown selection for integers
WReadOnly - Read-only inspector fields

Automation:

ScriptableObject Singleton Creator - Auto-create singletons
Attribute Metadata Cache Generator - Performance optimization
Sprite Label Processor - Automatic sprite label caching

Utilities:

Editor Utilities - Helper methods for editor scripting

Tools > Wallstop Studios > Unity Helpers:

Animation Copier
Animation Creator
AnimationEvent Editor
Fit Texture Size
Image Blur
Prefab Checker
Sprite Animation Editor
Sprite Atlas Generator
Sprite Cropper
Sprite Pivot Adjuster
Sprite Settings Applier
Sprite Sheet Animation Creator
Sprite Sheet Extractor
Texture Resizer
Texture Settings Applier

Assets > Create > Wallstop Studios > Unity Helpers:

Scriptable Sprite Atlas Config

Common Workflows¶

Setting Up New Sprites¶

Text Only

1. Import sprites to Assets/Sprites/
2. Use Sprite Cropper to remove padding
3. Use Texture Settings Applier:
   - Filter Mode: Bilinear
   - Wrap Mode: Clamp
   - Compression: CompressedHQ
4. Use Sprite Settings Applier:
   - Set consistent PPU (e.g., 32 or 64)
5. Use Sprite Pivot Adjuster for consistent alignment

Creating and Editing Animations¶

Text Only

1. Prepare sprite frames in folder
2. Open Sprite Animation Editor
3. Click "Browse Clips (Multi)..." if clips exist, or
4. Use Animation Creator to generate from sprites
5. Edit in Sprite Animation Editor:
   - Adjust frame order via drag-drop
   - Set appropriate FPS
6. Save clips
7. (Optional) Add animation events:
   a. Open AnimationEvent Editor
   b. Drag Animator to "Animator Object" field
   c. Select animation clip
   d. Add events at specific frames
   e. Configure event methods and parameters
   f. Save changes

Creating Sprite Atlases¶

Text Only

1. Create atlas config:
   a. Open Sprite Atlas Generator
   b. Click "Create New Config in 'Assets/Data'"
   c. Name your atlas configuration
2. Configure source folders:
   a. Click "Add New Source Folder Entry"
   b. Select folder containing sprites
   c. Add regex patterns (e.g., "^character_.*")
   d. Or add labels for filtering
3. Set packing options:
   - Max texture size (2048 recommended)
   - Padding (4px default)
   - Compression settings
4. Preview changes:
   a. Click "Scan Folders"
   b. Review sprites to add/remove
5. Generate atlas:
   a. Click "Add X Sprites" if satisfied
   b. Click "Generate/Update .spriteatlas ONLY"
   c. Click "Pack All Generated Sprite Atlases"

Pre-Commit Validation¶

Text Only

1. Open Prefab Checker
2. Enable all critical checks:
   - Missing Scripts ✓
   - Missing Required Components ✓
   - Null Object References ✓
3. Add changed prefab folders
4. Click "Run Checks"
5. Fix all reported issues
6. Re-run to verify
7. Commit changes

Optimizing Textures for Build¶

Text Only

1. Use Sprite Cropper on all sprites (reduces memory)
2. Use Texture Settings Applier with:
   - Appropriate compression for platform
   - Crunch compression enabled
   - Proper max texture sizes
3. Review build report for texture memory usage
4. Iterate on settings as needed

Keyboard Shortcuts & Tips¶

Sprite Animation Editor:

Enter in frame order field: Apply frame reordering
Drag frames: Reorder via visual feedback
Drag clips: Reorder layer priority

Prefab Checker:

Click console errors: Selects problematic prefabs
Toggle checks: Right-aligned checkboxes

General:

All tools remember last used directories
Most tools support drag-and-drop folders
Batch operations show progress in the console

Performance Considerations¶

Sprite Cropper:

Uses parallel processing for pixel scanning
Can process hundreds of sprites quickly
Memory usage scales with sprite size

Texture Settings Applier:

Triggers Unity reimport for affected textures
May take time on large texture sets
Refresh only happens once after all changes

Prefab Checker:

Caches reflection metadata for speed
Fast on repeated runs
Scales linearly with prefab count

Attribute Metadata Cache:

Eliminates ~95% of runtime reflection overhead
Startup time improvement: 50-200ms on large projects
Critical for IL2CPP builds

Troubleshooting¶

Tool window won't open:

Check the console for errors
Verify that the package is in the correct location
Try reimporting package

Settings not applying:

Ensure textures aren't in use
Check the console for import errors
Verify file permissions

Cache not regenerating:

Manually trigger via menu
Check for script compilation errors
Verify ScriptableObject singleton exists

Prefab Checker missing issues:

Ensure all relevant checks are enabled
Verify folders are correct
Check filter settings

Best Practices¶

Organization:

Keep sprites in an organized folder structure
Use consistent naming conventions
Separate by type (UI, Characters, Environment)

Performance:

Run Sprite Cropper before creating atlases
Use appropriate texture compression
Enable crunch compression for mobile

Quality:

Run Prefab Checker before commits
Use [ValidateAssignment] on critical fields
Maintain consistent texture settings per category
Use the manual recompilation menu/shortcut when iterating on packages to avoid reopening the project

Workflow:

Batch similar operations together
Use multi-file selection where available
Leverage automation tools (SingletonCreator, CacheGenerator)

Compilation helpers:

Menu path: Tools > Wallstop Studios > Unity Helpers > Request Script Compilation
Shortcut: Ctrl/Cmd + Alt + R (configurable via Unity’s Shortcut Manager under Wallstop / Request Script Compilation)
Behavior: Forces an AssetDatabase.Refresh (synchronous import) before calling CompilationPipeline.RequestScriptCompilation() and logs whenever Unity is already compiling so scripts created outside the editor are imported immediately.

Additional Resources¶

Attributes System:

See [ValidateAssignment] for prefab validation
See [ScriptableSingletonPath] for custom singleton paths
See [ParentComponent], [ChildComponent], [SiblingComponent] for relational queries

Related Components:

ScriptableObjectSingleton<T> - Base class for settings
AttributesComponent - Base class for the attribute system
LayeredImage - UI Toolkit multi-layer sprite rendering

Version Information¶

Document Version: 2.0 Package: com.wallstop-studios.unity-helpers Last Updated: 2025-10-08

What's New in v2.0:

Added comprehensive Sprite Atlas Generator documentation
Added Animation Event Editor documentation
Added Texture Resizer and Fit Texture Size tools
Added Custom Component Editors section
Added Property Drawers & Attributes section
Added Sprite Label Processor documentation
Expanded all existing tool documentation
Added new workflow examples
Complete menu item reference
Enhanced quick reference section

Summary¶

This package provides 20+ editor tools across multiple categories:

14 Editor Windows/Wizards:

Image Blur Tool, Sprite Cropper, Texture Settings Applier, Sprite Settings Applier
Sprite Pivot Adjuster, Texture Resizer, Fit Texture Size
Sprite Animation Editor, Animation Event Editor, Animation Creator, Animation Copier
Sprite Sheet Animation Creator, Sprite Atlas Generator, Prefab Checker

3 Custom Component Editors:

MatchColliderToSprite, PolygonCollider2DOptimizer, EnhancedImage

4 Property Drawers:

WShowIf, StringInList, IntDropDown, WReadOnly

3 Automated Systems:

ScriptableObject Singleton Creator
Attribute Metadata Cache Generator
Sprite Label Processor

1 Utility Library:

Editor Utilities

All tools are designed to work together seamlessly and follow consistent design patterns for ease of use.

For questions, issues, or feature requests, please contact the Wallstop Studios team.

Integration note: The cache powers editor dropdowns and reflection shortcuts for the Effects system’s AttributeModification.attribute field. See Effects System for how attributes, effects, and tags fit together.

MultiFile Selector (UI Toolkit)¶

The MultiFileSelectorElement is primarily intended for Editor tooling. It can also be used in player builds, where it enumerates files under the application’s data root. In the Editor it integrates with EditorPrefs and Reveal-in-Finder; at runtime it falls back to PlayerPrefs and omits Editor-only affordances.

Wallstop Studios Unity Helpers - Editor Tools Guide¶

TL;DR — What You Get¶

What Do You Want To Do? (Task-Based Index)¶

Optimize Sprite Memory & Performance¶

Create & Edit Animations¶

Build Sprite Atlases¶

Validate & Fix Prefabs¶

Analyze Code Quality¶

Apply Visual Effects¶

Automate Setup & Maintenance¶

Enhance Inspector Workflows¶

Table of Contents¶

Texture & Sprite Tools¶

Image Blur Tool¶

Sprite Cropper¶

Texture Settings Applier¶

Sprite Pivot Adjuster¶

Sprite Settings Applier¶

Texture Resizer¶

Fit Texture Size¶

Animation Tools¶

Sprite Animation Editor (Animation Viewer Window)¶

Animation Creator¶

Animation Copier¶

Sprite Sheet Animation Creator¶

Sprite Sheet Extractor¶

Animation Event Editor¶

Sprite Atlas Tools¶

Sprite Atlas Generator¶

Validation & Quality Tools¶

Prefab Checker¶

Unity Method Analyzer¶

Custom Component Editors¶

MatchColliderToSprite Editor¶

PolygonCollider2DOptimizer Editor¶

EnhancedImage Editor¶

Property Drawers & Attributes¶

WInLineEditor Property Drawer¶

WShowIf Property Drawer¶

StringInList Property Drawer¶

IntDropdown Property Drawer¶

WValueDropDown Property Drawer¶

WReadOnly Property Drawer¶

Automation & Utilities¶

ScriptableObject Singleton Creator¶

Sprite Label Processor¶

Request Script Compilation¶

Project Settings: Unity Helpers¶

Coroutine Wait Buffer Defaults¶

Inspector Pagination Defaults¶

Attribute Metadata Cache Generator¶

Editor Utilities¶

GetCurrentPathOfProjectWindow()¶

Quick Reference¶

Tools by Category¶

All Menu Items¶

Common Workflows¶

Setting Up New Sprites¶

Creating and Editing Animations¶

Creating Sprite Atlases¶

Pre-Commit Validation¶

Optimizing Textures for Build¶

Keyboard Shortcuts & Tips¶

Performance Considerations¶

Troubleshooting¶

Best Practices¶

Additional Resources¶

Version Information¶

Summary¶

MultiFile Selector (UI Toolkit)¶

`GetCurrentPathOfProjectWindow()`¶
