Inspector Selection Attributes¶

Transform selection controls from dropdowns to designer-friendly interfaces.

Unity Helpers provides four powerful selection attributes that replace standard dropdowns with toggle buttons, searchable lists, and type-safe selection controls. Perfect for flags, enums, predefined values, and dynamic option lists.

WEnumToggleButtons¶

Draws enum and flag enum fields as a toolbar of toggle buttons.

Basic Usage¶

C#
using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;

public class EntityPermissions : MonoBehaviour
{
    [System.Flags]
    public enum Permissions
    {
        None = 0,
        Move = 1 << 0,
        Attack = 1 << 1,
        UseItems = 1 << 2,
        CastSpells = 1 << 3,
    }

    [WEnumToggleButtons]
    public Permissions currentPermissions = Permissions.Move | Permissions.Attack;
}

Visual Reference

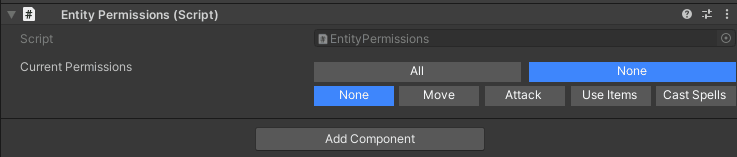

Flag enum permissions rendered as toggle buttons

Parameters¶

C#
[WEnumToggleButtons(
    int buttonsPerRow = 0,                  // Force column count (0 = automatic)
    bool showSelectAll = false,             // Show "Select All" button (flags only)
    bool showSelectNone = false,            // Show "Select None" button (flags only)
    bool enablePagination = true,           // Allow pagination for many options
    int pageSize = -1,                      // Override page size (defaults to project setting)
    string colorKey = "Default"             // Color palette key
)]

Flag Enums¶

C#
[System.Flags]
public enum DamageTypes
{
    None = 0,
    Physical = 1 << 0,
    Fire = 1 << 1,
    Ice = 1 << 2,
    Lightning = 1 << 3,
    Poison = 1 << 4,
}

[WEnumToggleButtons(showSelectAll: true, showSelectNone: true, buttonsPerRow: 3)]
public DamageTypes resistances = DamageTypes.Fire | DamageTypes.Ice;

Visual Reference

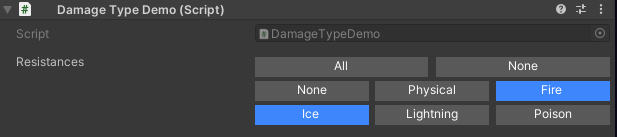

Flag enum with Select All and Select None quick action buttons

Behavior:

Each flag value gets its own toggle button
Multiple flags can be active simultaneously
"Select All" and "Select None" buttons for quick configuration

Standard Enums (Radio Buttons)¶

C#
public enum WeaponType { Melee, Ranged, Magic }

[WEnumToggleButtons(buttonsPerRow: 3, colorKey: "Default-Dark")]
public WeaponType weaponType = WeaponType.Melee;

Visual Reference

Standard enum rendered as radio-style toggle buttons (only one active)

Behavior:

Only one option can be selected at a time
Clicking a button deselects others

Pagination¶

C#
[System.Flags]
public enum AllAbilities
{
    None = 0,
    Ability1 = 1 << 0,
    Ability2 = 1 << 1,
    // ... 20 more abilities ...
    Ability22 = 1 << 21,
}

[WEnumToggleButtons(enablePagination: true, pageSize: 10)]
public AllAbilities unlockedAbilities;

Visual Reference

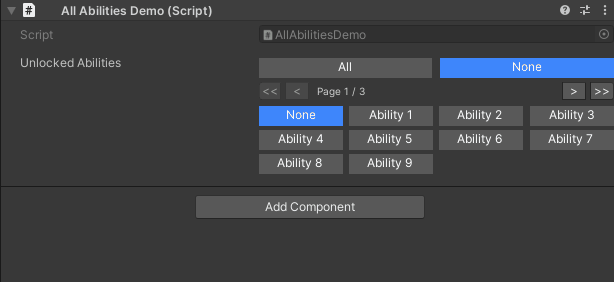

Paginated toggle buttons with First, Previous, Next, Last navigation controls

Features:

Automatic pagination for many options
Page size controlled by pageSize parameter or UnityHelpersSettings.EnumToggleButtonsPageSize
Navigation: First, Previous, Next, Last buttons
Summary badge shows selections on other pages

Layout Control¶

C#
// Automatic layout (fits to inspector width)
[WEnumToggleButtons]
public Permissions autoLayout;

// Force 2 columns
[WEnumToggleButtons(buttonsPerRow: 2)]
public Permissions twoColumns;

// Force single column
[WEnumToggleButtons(buttonsPerRow: 1)]
public Permissions singleColumn;

Visual Reference

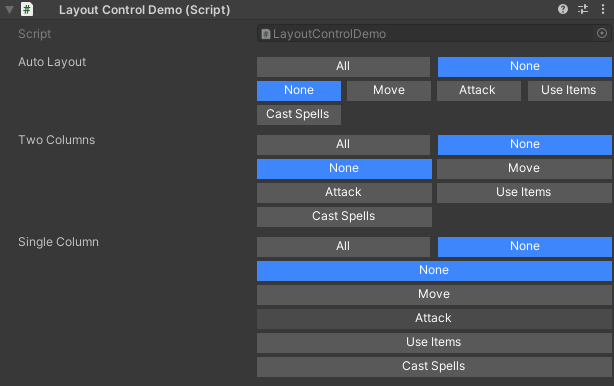

Different column layouts: automatic, 2 columns, and single column

Color Theming¶

C#
[WEnumToggleButtons(colorKey: "Default-Dark")]
public Permissions darkTheme;

[WEnumToggleButtons(colorKey: "Default-Light")]
public Permissions lightTheme;

Visual Reference

Toggle buttons with dark and light color themes

Combining with Other Attributes¶

C#
// Works with IntDropDown/StringInList/WValueDropDown!
[IntDropDown(0, 30, 60, 120)]
[WEnumToggleButtons]
public int frameRate = 60;  // Shows as toggle buttons instead of dropdown

Composite Flags Behavior¶

The drawer intentionally filters out composite flag values (e.g., ReadWrite = Read | Write). This keeps the UI focused on atomic toggles and avoids ambiguous interactions. Use the "Select All" and "Select None" buttons for bulk operations.

Best Practices for WEnumToggleButtons¶

Keep option counts manageable — toggle groups work best for short lists where designers can see everything without scrolling
Name enum members descriptively so automatic labels remain readable
Combine with conditional attributes like WShowIf to build adaptive, context-aware authoring tools

WValueDropDown¶

Generic dropdown for any type with fixed values or provider methods.

Basic Usage (Fixed Values)¶

C#
// Primitive types
[WValueDropDown(0, 25, 50, 100)]
public int staminaThreshold = 50;

[WValueDropDown(0.5f, 1.0f, 1.5f, 2.0f)]
public float damageMultiplier = 1.0f;

[WValueDropDown("Easy", "Normal", "Hard", "Insane")]
public string difficulty = "Normal";

Visual Reference

Dropdown showing predefined integer, float, and string values

Provider Methods¶

C#
using System.Collections.Generic;
using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;

[CreateAssetMenu(fileName = "PowerUpDefinition", menuName = "Power-Up Definition")]
public class PowerUpDefinition : ScriptableObject
{
    public string name;
    public Sprite icon;
}

public class PowerUpConfig : MonoBehaviour
{
    [WValueDropDown(typeof(PowerUpLibrary), nameof(PowerUpLibrary.GetAvailablePowerUps))]
    public PowerUpDefinition selectedPowerUp;
}

public static class PowerUpLibrary
{
    public static IEnumerable<PowerUpDefinition> GetAvailablePowerUps()
    {
        // Return all power-ups from database/resources/etc.
        return Resources.LoadAll<PowerUpDefinition>("PowerUps");
    }
}

Visual Reference

PowerUp definitions loaded from Resources folder

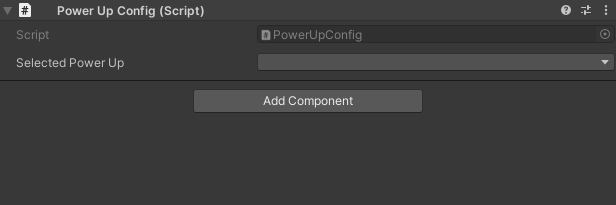

Dropdown populated dynamically from a provider method

Primitive Overloads¶

C#
using System.Collections.Generic;
using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;

public class WValueDropDownPrimitives : MonoBehaviour
{
    // All primitive types supported:
    [WValueDropDown(true, false)] // bool
    public bool boolValue;

    [WValueDropDown(true, false)] // bool
    public List<bool> boolValues;

    [WValueDropDown('A', 'B', 'C')] // char
    public char charValue;

    [WValueDropDown((byte)1, (byte)2, (byte)3)] // byte
    public byte byteValue;

    [WValueDropDown((short)10, (short)20, (short)30)] // short
    public short shortValue;

    [WValueDropDown(100, 200, 300)] // int
    public int intValue;

    [WValueDropDown(1000L, 2000L, 3000L)] // long
    public long longValue;

    [WValueDropDown(0.1f, 0.5f, 1.0f)] // float
    public float floatValue;

    [WValueDropDown(0.1, 0.5, 1.0)] // double
    public double doubleValue;
}

Visual Reference

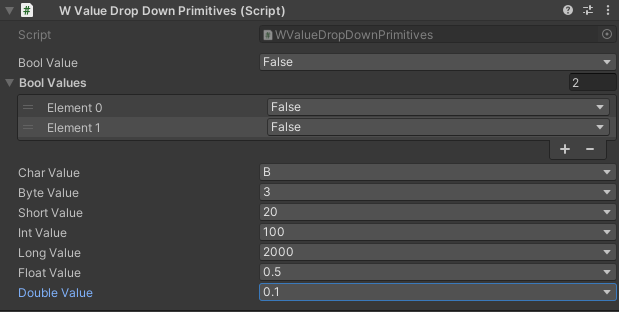

Multiple dropdowns showing all supported primitive types

Instance Provider (context-aware)¶

C#
public class DynamicOptions : MonoBehaviour
{
    public string prefix = "Option";
    public int optionCount = 5;

    // Instance method - uses object state to build options
    [WValueDropDown(nameof(GetAvailableOptions), typeof(string))]
    public string selectedOption;

    private IEnumerable<string> GetAvailableOptions()
    {
        for (int i = 1; i <= optionCount; i++)
        {
            yield return $"{prefix}_{i}";
        }
    }
}

Passing only a method name instructs the drawer to search the decorated type for a parameterless method. Instance methods run on the serialized object; static methods are also supported. The second parameter specifies the value type for proper dropdown rendering.

Alternate Constructor Forms:

C#
// Form 1: Instance method with explicit value type
[WValueDropDown(nameof(GetOptions), typeof(int))]
public int selection;

// Form 2: Static provider from external type
[WValueDropDown(typeof(DataProvider), nameof(DataProvider.GetItems))]
public Item selected;

// Form 3: Static provider with explicit value type conversion
[WValueDropDown(typeof(DataProvider), nameof(DataProvider.GetIds), typeof(int))]
public int selectedId;

Custom Types¶

C#
using System;
using System.Collections.Generic;
using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;

[Serializable]
public class Preset
{
    public string name;
    public float value;

    public override string ToString() => name;  // Used for dropdown label
}

public class Config : MonoBehaviour
{
    [WValueDropDown(typeof(Config), nameof(GetPresets))]
    public Preset selectedPreset;

    public static IEnumerable<Preset> GetPresets()
    {
        return new[]
        {
            new Preset { name = "Low", value = 0.5f },
            new Preset { name = "Medium", value = 1.0f },
            new Preset { name = "High", value = 2.0f },
        };
    }
}

Visual Reference

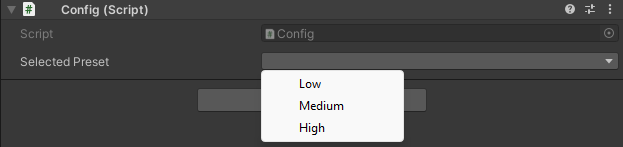

Dropdown showing custom serializable class options using ToString() for labels

Constructor Reference¶

Constructor	Use Case
`WValueDropDown(params T[] values)`	Fixed list of primitive values (int, float, string, etc.)
`WValueDropDown(Type provider, string method)`	Static or instance method on external type
`WValueDropDown(Type provider, string method, Type valueType)`	Provider with explicit value type conversion
`WValueDropDown(string method, Type valueType)`	Instance/static method on the decorated type itself
`WValueDropDown(Type valueType, params object[] values)`	Fixed list with explicit type specification

Best Practices for WValueDropDown¶

Override ToString() on custom types to control dropdown labels
Use static providers for data shared across objects
Use instance providers when options depend on the object state
Provider methods are called each render — keep them efficient or cache results
Return empty collection instead of null from providers

IntDropDown¶

Integer field rendered as a dropdown with predefined options.

Basic Usage¶

C#
[IntDropDown(0, 30, 60, 120, 240)]
public int refreshRate = 60;

[IntDropDown(1, 2, 4, 8, 16, 32)]
public int threadCount = 4;

Visual Reference

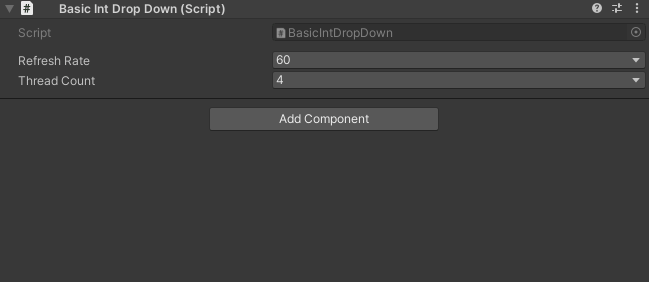

Integer dropdown showing predefined frame rate options

Provider Method¶

C#
public class FrameRateConfig : MonoBehaviour
{
    [IntDropDown(typeof(FrameRateLibrary), nameof(FrameRateLibrary.GetSupportedFrameRates))]
    public int targetFrameRate = 60;
}

public static class FrameRateLibrary
{
    public static IEnumerable<int> GetSupportedFrameRates()
    {
        return new[] { 30, 60, 90, 120, 144, 240 };
    }
}

Fallback Behavior¶

C#
[IntDropDown(10, 20, 30)]
public int value = 25;  // Not in list! Shows as standard IntField

Note: If the current value isn't in the list, falls back to standard IntField for editing.

StringInList¶

String field constrained to a set of allowed values with an inline dropdown that opens a searchable popup.

Basic Usage¶

C#
[StringInList("Easy", "Normal", "Hard", "Nightmare")]
public string difficulty = "Normal";

[StringInList("Red", "Green", "Blue", "Yellow", "Purple")]
public string teamColor = "Red";

Visual Reference

String dropdown with an inline popup showing search bar and results

Provider Method¶

C#
public class LocalizationConfig : MonoBehaviour
{
    [StringInList(typeof(LocalizationKeys), nameof(LocalizationKeys.GetAllKeys))]
    public string dialogKey;
}

public static class LocalizationKeys
{
    public static IEnumerable<string> GetAllKeys()
    {
        // Return keys from localization database
        return new[] { "DIALOG_GREETING", "DIALOG_FAREWELL", "DIALOG_QUEST_START" };
    }
}

Instance Provider (context-aware)¶

C#
public class StateMachine : MonoBehaviour
{
    [StringInList(nameof(BuildAvailableStates))]
    public string currentState;

    private IEnumerable<string> BuildAvailableStates()
    {
        // Instance data drives the dropdown
        yield return $"{gameObject.name}_Idle";
        yield return $"{gameObject.name}_Run";
    }

    public static IEnumerable<string> StaticStates()
    {
        // Static helpers still work when referenced by name
        return new[] { "Global_A", "Global_B" };
    }
}

Passing only a method name instructs the drawer to search the decorated type for a parameterless method. Instance methods run on the serialized object; static methods are also supported.

Search and Pagination¶

C#
[StringInList(typeof(SceneLibrary), nameof(SceneLibrary.GetAllSceneNames))]
public string targetScene;

public static class SceneLibrary
{
    public static IEnumerable<string> GetAllSceneNames()
    {
        // Return 100+ scene names
        return EditorBuildSettings.scenes.Select(s => s.path);
    }
}

When the menu contains more entries than the configured limit, clicking the field opens a popup that embeds the search bar and pagination controls directly in the dropdown itself. The inspector row remains single-line, but the popup still supports fast filtering and page navigation.

Visual Reference

Popup window with a search box filtering results in real-time

Features:

Dedicated popup hosts search + pagination when the option count exceeds UnityHelpersSettings.StringInListPageLimit
Inspector row stays single-line; the popup includes filtering, paging, and keyboard navigation
Works in both IMGUI and UI Toolkit inspectors (including SerializableTypeDrawer)
Accepts fixed lists, static provider methods, or instance provider methods resolved on the component

Use Cases¶

Scene Names:

C#
[StringInList(typeof(SceneHelper), nameof(SceneHelper.GetAllScenes))]
public string loadScene;

Animation States:

C#
[StringInList("Idle", "Walk", "Run", "Jump", "Attack")]
public string currentAnimation = "Idle";

Localization Keys:

C#
[StringInList(typeof(LocaleManager), nameof(LocaleManager.GetKeys))]
public string textKey;

Tag/Layer Names:

C#
[StringInList("Player", "Enemy", "Projectile", "Environment")]
public string entityTag = "Player";

Comparison Table¶

Feature	WEnumToggleButtons	WValueDropDown	IntDropDown	StringInList
Primary Use	Enums, flag enums	Any type	Integers	Strings
Visual Style	Toggle buttons	Dropdown	Dropdown	Dropdown + search
Multiple Selection	Yes (flags)	No	No	No
Pagination	Yes	No	No	Yes
Search	No	No	No	Yes
Provider Methods	No	Yes	Yes	Yes
Custom Types	No	Yes	No	No
Color Theming	Yes	No	No	No

Best Practices¶

1. Choose the Right Attribute¶

C#
// ✅ GOOD: WEnumToggleButtons for flags (visual toggle state)
[System.Flags]
public enum Features { None = 0, Feature1 = 1, Feature2 = 2, Feature3 = 4 }

[WEnumToggleButtons]
public Features enabledFeatures;

// ✅ GOOD: WValueDropDown for fixed type-safe options
[WValueDropDown(0.5f, 1.0f, 1.5f, 2.0f)]
public float speedMultiplier;

// ✅ GOOD: IntDropDown for integer-specific options
[IntDropDown(30, 60, 120, 240)]
public int frameRate;

// ✅ GOOD: StringInList for string validation
[StringInList("Easy", "Normal", "Hard")]
public string difficulty;

// ❌ BAD: Using strings when enum would be better
[StringInList("Easy", "Normal", "Hard")]
public string difficulty;  // Should be an enum!

2. Use Provider Methods for Dynamic Data¶

C#
// ✅ GOOD: Provider method for data that changes
[WValueDropDown(typeof(AssetDatabase), nameof(GetAllPrefabs))]
public GameObject prefab;

public static IEnumerable<GameObject> GetAllPrefabs()
{
    return Resources.LoadAll<GameObject>("Prefabs");
}

// ❌ BAD: Hardcoded values for dynamic data
[WValueDropDown/* hardcoded list of 50 prefabs */]
public GameObject prefab;  // Nightmare to maintain!

3. Enable Helpful UI Features¶

C#
// ✅ GOOD: Select All/None for flag enums
[System.Flags]
public enum Permissions { None = 0, Read = 1, Write = 2, Execute = 4 }

[WEnumToggleButtons(showSelectAll: true, showSelectNone: true)]
public Permissions permissions;

// ✅ GOOD: Pagination for many options
[WEnumToggleButtons(enablePagination: true, pageSize: 10)]
public ManyOptionsEnum options;

// ❌ BAD: No pagination with 50 options (cluttered inspector!)
[WEnumToggleButtons(enablePagination: false)]
public ManyOptionsEnum options;

Examples¶

Example 1: Damage Type Resistances¶

C#
using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;

public class Armor : MonoBehaviour
{
    [System.Flags]
    public enum DamageType
    {
        None = 0,
        Physical = 1 << 0,
        Fire = 1 << 1,
        Ice = 1 << 2,
        Lightning = 1 << 3,
        Poison = 1 << 4,
        Magic = 1 << 5,
    }

    [WEnumToggleButtons(showSelectAll: true, showSelectNone: true,
                        buttonsPerRow: 3, colorKey: "Default-Dark")]
    public DamageType resistances = DamageType.Physical;

    [WEnumToggleButtons(showSelectAll: true, showSelectNone: true,
                        buttonsPerRow: 3, colorKey: "Default-Light")]
    public DamageType vulnerabilities = DamageType.None;
}

Example 2: Graphics Presets¶

C#
using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;

public class GraphicsConfig : MonoBehaviour
{
    [System.Serializable]
    public class QualityPreset
    {
        public string name;
        public int textureQuality;
        public int shadowDistance;

        public override string ToString() => name;
    }

    [WValueDropDown(typeof(GraphicsConfig), nameof(GetPresets))]
    public QualityPreset selectedPreset;

    public static IEnumerable<QualityPreset> GetPresets()
    {
        return new[]
        {
            new QualityPreset { name = "Low", textureQuality = 0, shadowDistance = 50 },
            new QualityPreset { name = "Medium", textureQuality = 1, shadowDistance = 100 },
            new QualityPreset { name = "High", textureQuality = 2, shadowDistance = 200 },
            new QualityPreset { name = "Ultra", textureQuality = 3, shadowDistance = 500 },
        };
    }
}

Example 3: Scene Selection¶

C#
using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;
using System.Linq;

public class SceneLoader : MonoBehaviour
{
    [StringInList(typeof(SceneLoader), nameof(GetAllSceneNames))]
    public string mainMenuScene;

    [StringInList(typeof(SceneLoader), nameof(GetAllSceneNames))]
    public string gameplayScene;

    [StringInList(typeof(SceneLoader), nameof(GetAllSceneNames))]
    public string creditsScene;

    public static IEnumerable<string> GetAllSceneNames()
    {
#if UNITY_EDITOR
        return UnityEditor.EditorBuildSettings.scenes
            .Select(s => System.IO.Path.GetFileNameWithoutExtension(s.path));
#else
        return new string[0];
#endif
    }
}

Example 4: Framerate Configuration¶

C#
using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;

public class PerformanceSettings : MonoBehaviour
{
    [IntDropDown(30, 60, 90, 120, 144, 240, -1)]
    public int targetFrameRate = 60;  // -1 = unlimited

    [IntDropDown(0, 1, 2, 3, 4)]
    public int vsyncCount = 0;  // 0 = disabled

    [WEnumToggleButtons]
    public enum FrameLimitMode { Unlimited, Target, VSync }

    public FrameLimitMode limitMode = FrameLimitMode.Target;

    private void OnValidate()
    {
        Application.targetFrameRate = targetFrameRate;
        QualitySettings.vSyncCount = vsyncCount;
    }
}

Inspector Selection Attributes¶

Table of Contents¶

WEnumToggleButtons¶

Basic Usage¶

Parameters¶

Flag Enums¶

Standard Enums (Radio Buttons)¶

Pagination¶

Layout Control¶

Color Theming¶

Combining with Other Attributes¶

Composite Flags Behavior¶

Best Practices for WEnumToggleButtons¶

WValueDropDown¶

Basic Usage (Fixed Values)¶

Provider Methods¶

Primitive Overloads¶

Instance Provider (context-aware)¶

Custom Types¶

Constructor Reference¶

Best Practices for WValueDropDown¶

IntDropDown¶

Basic Usage¶

Provider Method¶

Fallback Behavior¶

StringInList¶

Basic Usage¶

Provider Method¶

Instance Provider (context-aware)¶

Search and Pagination¶

Use Cases¶

Comparison Table¶

Best Practices¶

1. Choose the Right Attribute¶

2. Use Provider Methods for Dynamic Data¶

3. Enable Helpful UI Features¶

Examples¶

Example 1: Damage Type Resistances¶

Example 2: Graphics Presets¶

Example 3: Scene Selection¶

Example 4: Framerate Configuration¶

See Also¶
