Visual Components Guide

TL;DR — Why Use These

• AnimatedSpriteLayer: Data structure for packaging sprite animation frames with per-frame offsets and transparency
• LayeredImage: UI Toolkit element that composites multiple sprite animation layers into a single animated image
• EnhancedImage: Extended Unity UI Image with HDR color support and shape masking

These components solve the problem of creating complex, multi-layer sprite animations without pre-rendering every combination into massive sprite sheets.

---

AnimatedSpriteLayer

What it is: An immutable data structure (struct) that packages a sprite animation sequence with per-frame position offsets and layer-wide alpha transparency.

Why it exists: When building complex sprite animations (like a character with equipment, effects, or layered body parts), you need a standardized way to represent each layer with its timing, positioning, and transparency. This struct is the building block for the LayeredImage composition system.

Problem it solves:

• Eliminates manually syncing sprite frames, offsets, and alpha values across multiple systems
• Provides type-safe storage for animation layer data
• Automatically converts world-space offsets to pixel-space for rendering
• Validates texture readability at construction time (catches import setting errors early)

When to Use

✅ Use when:

• Building LayeredImage compositions
• Creating character animations with separate layers for body parts
• Combining sprite effects (glow, shadow, outline) with base sprites
• You need frame-by-frame position adjustments (bobbing, recoil, etc.)
• Working with sprite-based animations that need dynamic layering

❌ Don’t use when:

• You only have a single sprite sequence (just use Animator)
• Sprites don’t need per-frame offsets (just use sprite arrays)
• You’re working with UI Toolkit animations (use USS transitions)
• Performance is critical and you can pre-render combinations

Basic Usage

using WallstopStudios.UnityHelpers.Visuals;
using UnityEngine;

// Create a layer from sprite sequence
Sprite[] walkCycleFrames = LoadWalkCycleSprites(); // Must have Read/Write enabled!

// Optional: per-frame offsets in world space (e.g., for bobbing motion)
Vector2[] walkBobOffsets = new[]
{
    new Vector2(0, 0.1f),   // Frame 0: slight up
    new Vector2(0, 0),      // Frame 1: neutral
    new Vector2(0, 0.1f),   // Frame 2: slight up
    new Vector2(0, 0)       // Frame 3: neutral
};

AnimatedSpriteLayer bodyLayer = new AnimatedSpriteLayer(
    sprites: walkCycleFrames,
    worldSpaceOffsets: walkBobOffsets,
    alpha: 1f  // Fully opaque
);

// Create equipment layer (same frame count, different sprites)
Sprite[] helmetFrames = LoadHelmetSprites();
AnimatedSpriteLayer helmetLayer = new AnimatedSpriteLayer(
    sprites: helmetFrames,
    worldSpaceOffsets: null, // No offsets
    alpha: 0.9f  // Slightly transparent
);

// Combine in LayeredImage (see below)

Editor-Only: Creating from AnimationClip

In editor code, you can create layers directly from AnimationClips:

#if UNITY_EDITOR
using UnityEditor;

AnimationClip walkClip = AssetDatabase.LoadAssetAtPath<AnimationClip>("Assets/Animations/Walk.anim");
AnimatedSpriteLayer layer = new AnimatedSpriteLayer(
    clip: walkClip,
    worldSpaceOffsets: null,
    alpha: 1f
);
#endif

Important Notes

Texture Readability: All sprites must have Read/Write Enabled in their texture import settings. The constructor validates this and logs errors for non-readable textures.

To fix:

1. Select the texture asset
2. In Inspector, check “Read/Write Enabled”
3. Click Apply

Frame Rate: Default frame rate is 12 fps (stored in AnimatedSpriteLayer.FrameRate constant). This matches classic sprite animation timing.

Offset Conversion: World-space offsets are automatically converted to pixel-space using sprite pixels-per-unit. This ensures offsets scale correctly with sprite resolution.

---

LayeredImage

What it is: A UI Toolkit VisualElement that composites multiple AnimatedSpriteLayer instances into a single animated image with alpha blending, automatic cropping, and frame timing.

Why it exists: Creating character customization systems (body + equipment), visual effects (base + glow), or any multi-layer sprite animation traditionally requires pre-rendering every combination into massive sprite sheets. LayeredImage composes layers dynamically at runtime.

Problem it solves:

• Sprite sheet explosion: Instead of 10 bodies × 20 helmets × 15 armors = 3,000 pre-rendered sprites, you have 10 + 20 + 15 = 45 source sprites
• Memory efficiency: Only active layers are loaded, not every possible combination
• Runtime flexibility: Change equipment/effects without new assets
• Automatic composition: Handles alpha blending, pivot alignment, and cropping

When to Use

✅ Use when:

• Character customization systems (swap equipment, clothing, accessories)
• Visual effects that layer over base sprites (shields, auras, damage flashes)
• Procedural sprite generation from components
• UI that needs animated, multi-layer sprites
• You want to avoid combinatorial explosion of pre-rendered sprites

❌ Don’t use when:

• Single-layer animations (use Unity’s Image or Animator)
• 3D models (use skinned mesh renderers)
• Performance is absolutely critical and you can afford pre-rendered sheets
• Sprites don’t share the same frame count/timing
• Working in UGUI (use EnhancedImage for UGUI, though it doesn’t support layering)

Basic Usage

using WallstopStudios.UnityHelpers.Visuals.UIToolkit;
using UnityEngine.UIElements;

// Create layers (see AnimatedSpriteLayer section above)
AnimatedSpriteLayer[] layers = new[]
{
    bodyLayer,    // Base character
    armorLayer,   // Equipment layer 1
    helmetLayer,  // Equipment layer 2
    glowLayer     // Effect layer
};

// Create LayeredImage
LayeredImage characterImage = new LayeredImage(
    inputSpriteLayers: layers,
    backgroundColor: null,  // Transparent background (or use Color for solid background)
    fps: 12f,               // Animation speed
    updatesSelf: true,      // Automatically advances frames (uses Unity editor ticks or coroutines)
    pixelCutoff: 0.01f      // Alpha threshold for cropping transparent pixels
);

// Add to UI Toolkit hierarchy
rootVisualElement.Add(characterImage);

Manual Frame Control

If you need precise control over frame advancement:

LayeredImage manualImage = new LayeredImage(
    inputSpriteLayers: layers,
    backgroundColor: null,
    fps: 12f,
    updatesSelf: false,  // Disable automatic updates
    pixelCutoff: 0.01f
);

// In your update loop
void Update()
{
    manualImage.Update(force: false); // Advances frame based on elapsed time
}

// Or force immediate frame advance
manualImage.Update(force: true);

Changing Animation Speed

// Set frames per second at runtime
characterImage.Fps = 24f; // Speed up animation
characterImage.Fps = 6f;  // Slow down animation

Visual Demo

LayeredImage in Action

Character with dynamically composited layers animating at runtime

Swapping equipment layers at runtime without pre-rendered sprite sheets

How Compositing Works

LayeredImage performs these steps each frame:

1. Allocates canvas: Creates a texture large enough to hold all layers with their offsets
2. Alpha blending: Layers are composited back-to-front with alpha blending
3. Pivot alignment: Each sprite’s pivot point is respected during positioning
4. Offset application: Per-frame pixel offsets are applied
5. Cropping: Transparent borders are trimmed (configurable via pixelCutoff)
6. Rendering: Final composited texture is displayed

Performance optimization:

• Uses parallel processing for large sprites (2048+ pixels total)
• Employs array pooling to minimize GC allocations
• Caches composited frames when possible

Pixel Cutoff Parameter

Controls how aggressive transparent pixel cropping is:

// More aggressive cropping (removes near-transparent pixels)
layeredImage.pixelCutoff = 0.05f;

// Less aggressive (keeps more semi-transparent pixels)
layeredImage.pixelCutoff = 0.001f;

// No cropping (includes fully transparent border)
layeredImage.pixelCutoff = 0f;

Higher values = smaller final image, but may clip soft edges (glows, shadows).

Important Notes

Frame Synchronization: All layers must have the same number of frames. Mixing 4-frame and 8-frame animations will cause visual glitches.

Performance Considerations:

• Compositing happens every frame for animated images
• Large sprite resolutions (1024×1024+) will impact performance
• Consider pre-rendering if targeting low-end devices
• Parallel processing threshold is 2048 pixels (width × height)

Editor vs Runtime:

• In Editor: Uses Unity’s editor update ticks for animation
• In Runtime: Uses coroutines for frame timing
• Both honor updatesSelf setting

---

EnhancedImage (UGUI)

What it is: An extended version of Unity’s UI Image component with HDR color support and texture-based shape masking.

Why it exists: Unity’s standard Image component doesn’t support:

• HDR colors (for bloom/glow effects)
• Complex shape masks (beyond sprite masks)
• Shader-based shape rendering

See full documentation: Editor Tools Guide - EnhancedImage

Visual Demo

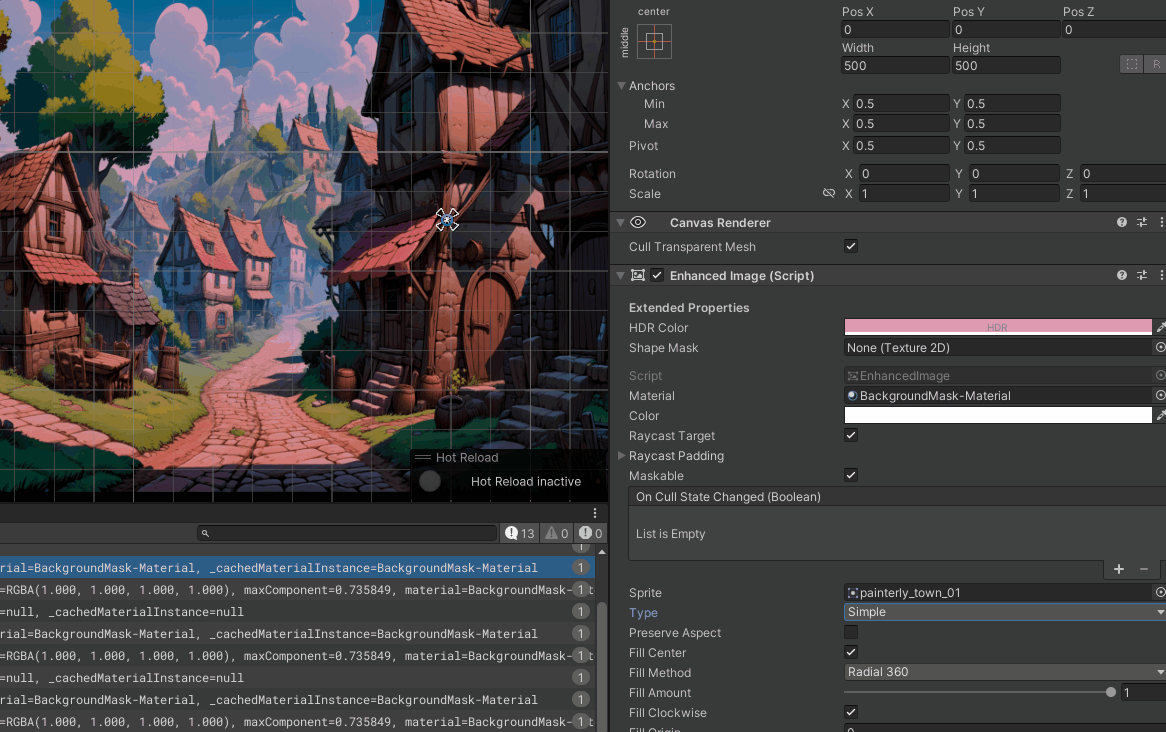

HDR color values above 1.0 create bloom effects when post-processing is enabled

Quick example:

using WallstopStudios.UnityHelpers.Visuals.UGUI;

EnhancedImage image = GetComponent<EnhancedImage>();

// HDR color for bloom
image.HdrColor = new Color(2f, 0.5f, 0.1f, 1f); // RGB values > 1 for bloom

// Shape mask
image.shapeMask = myMaskTexture; // Black areas are transparent

---

Best Practices

AnimatedSpriteLayer

• Always enable Read/Write on source textures (build will fail otherwise)
• Keep frame counts consistent across layers for the same animation
• Use world-space offsets for consistent motion across different sprite resolutions
• Cache layer instances when using the same animation repeatedly (they’re immutable)

LayeredImage

• Layer order matters: Layers are rendered front-to-back in array order
• Optimize sprite sizes: Trim transparent borders before importing (use Sprite Editor’s “Tight” mode)
• Profile on target hardware: Mobile devices may struggle with 512×512+ composites at 60fps
• Use manual updates when syncing with non-UI systems (like gameplay state)
• Pre-render if combinations are limited and performance is critical

EnhancedImage

• Don’t mix with Image: EnhancedImage replaces Unity’s Image, don’t use both
• Material cleanup is automatic but test in edit mode transitions
• HDR requires post-processing: Ensure Bloom is enabled in your camera’s post-processing

---

Related Documentation

• Editor Tools Guide - EnhancedImage editor integration
• Samples - Example projects for each component
• Math & Extensions - Color utilities used internally

---

FAQ

Q: Can I mix different frame counts in LayeredImage? A: No, all layers must have the same frame count. Pad shorter animations with duplicate frames if needed.

Q: Why are my layers not aligned correctly? A: Check that sprite pivots are set correctly (usually center). LayeredImage respects sprite pivot points.

Q: Can I change layers at runtime? A: Currently no, LayeredImage is immutable after construction. Create a new instance with updated layers.

Q: Performance impact vs pre-rendered sprites? A: Compositing costs ~1-3ms per image on modern hardware. Pre-rendered is faster but uses more memory/storage.

Q: Does this work with Unity’s Animator? A: No, LayeredImage is independent. It’s designed for UI Toolkit programmatic control.

Q: Can I export the composited result? A: Not directly, but you could capture the rendered texture using Texture2D.ReadPixels in a render texture setup.
